G & l technologies shutter equipment (package)

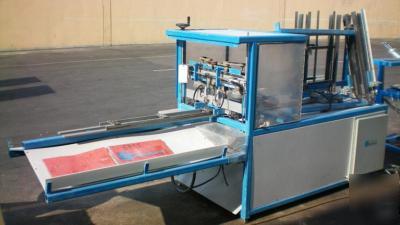

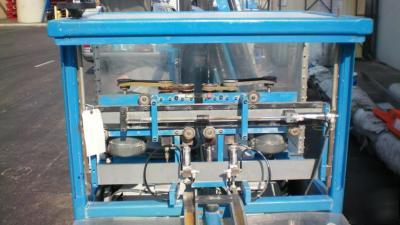

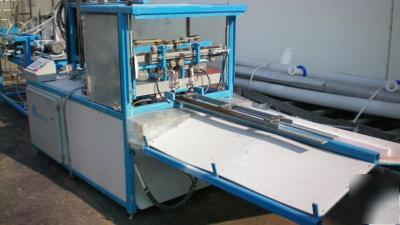

G & L Technologies - Louver Production System
Condition: Excellent-G L Factory Rates Condition "B"
Voltage: 208V, 3 Ph, 15 AMP Replacement Cost Of $170,000.00
Automatic, hopper-fed continuous operation machine. Automatically performs the process steps of louver end-sanding, drilling, pinning, and tilt rod stapling in the production of wood and polywood shutters.
Handles flat or tapered louvers from 6" - 36" in length with a variates of up to 1/16" on a specific length setup; 0.3" - 1/2" thickness and 1-7/8" - 5-1/2" width; louver material can be wood or plywood.
Includes PLC control with keypad and LCD display for setup and function control such as index speed, spacing, system staple, drill and pin sequencing, and parts feed.
System basically takes all the individual components(louver blade, tilt rod staples, pivot pins, and tilt rod itself) and produces a semi-finished louver without the stiles & rails.

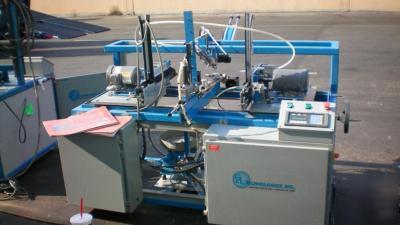

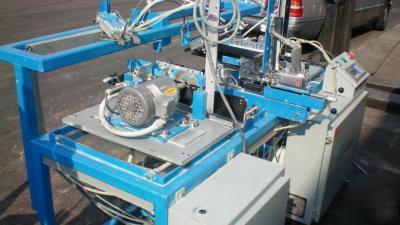

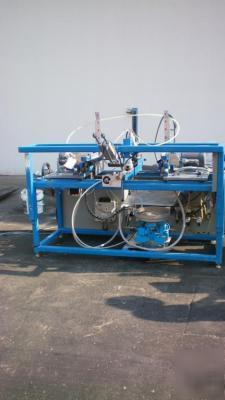

G & L Technologies - Stile Production System
The "SPS-2" is a fully automated system designed to perform all manufacturing steps on a shutter stile production. The system consists of a hopper feed and product index system to process stiles through all boring, mortising and saw cutting operations. It performs multiple tasks in a single system to reduce processing costs.
It utilizes both in-feed and out-feed hoppers for stand along operation.
Results: improved consistency of bore locations producing higher quality shutters; optimizes floor space usage.
Stile thickness from 3/4" - 2"; Stile width from 1" - 6" stile length from 18' and up; handles wood and plastics.
Includes maintenance tools, owner and operator's manuals. - Matches the production rate of the G & K LPS-36T.

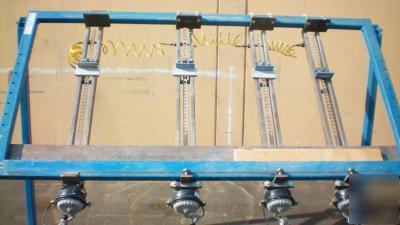

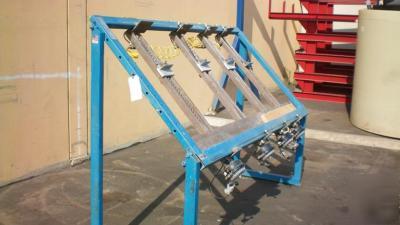

38" Front to back x 84" Left to right clamping cap; the door clamp is a single row, 2-station, air operated assembly clamp (mounted on a 45 degree angle) designed to produce cabinet doors.
Equipped with (4) quick adjusting clamps on the front and (2) quick adjusting cross clamps on the side , (6) diaphragm cylinders provide clamping pressure with single lever activation.
All squaring components have a shelf area to hold the pieces of the frame. The pre-glued components are loosely assembled and laid in the squaring assembly.
