Miller 907149 spectrum 125C 12A 115V 1PH 60HZ 20FT to
Miller 907149 Spectrum 125C 12A 115V 1Ph 60Hz 20Ft To

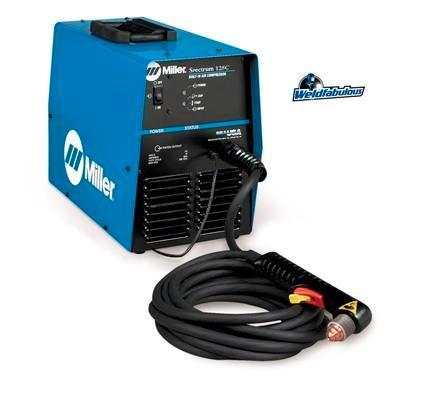

Miller Electric # 907149 Spectrum 125C Plasma Cutter
Built-in, heavy-duty industrial piston-driven compressor provides long life and superior airflow.
Solid-state, constant-current design offers consistent 12 amp cutting arc for continuous quality cutting up to 3/16 in steel in steel.
Electronic Pilot Arc Controller automatically controls the pilot circuit to provide expanded metal cutting ability without having to re-trigger the torch, increasing productivity and extending tip life.
LVC line voltage compensation provides peak performance power under variable conditions (98 to 132 volts) for steady cuts and cleaner ending cuts.
35% duty cycle is tested at 40 C (104 F) to give you the cutting power whenever you need it.
Starts without high-frequency so it will not interfere with or damage controls or computer.
The plasma arc is created by pulling an electrical arc between an electrode and tip. This process eliminates high frequency by forcing an electrical arc between the two pieces.
Protection to extend the life of consumables and the welding torch is enhanced by our post flow circuit that provides shielding gas after you release the trigger. Input Power:
* 12 A at 110 VDC, 35% Duty Cycle
