Arbitrary function/audio generator - freq counter, usb

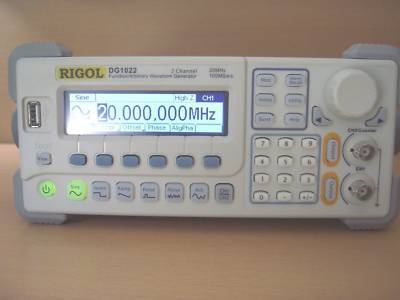

"20MHZ Digital Arbitrary Function Generator"
With Multiple Standard / User-defined Arbitrary Waveforms, Frequency Counter
Equipment was used for once so its condition " like new" / no scratches / accessories included
1. DDS technology: Output signals become more accurate
and stable with lower distortion
2. 100 MSa/s of sample rate, 14 bits of vertical resolution,
3. Intuitionistic user interface, to be easy to use without
Sine, Square, Ramp, Pulse, Noise, Exponential Rise,
Exponential Fall, Sinc, Cardiac, DC
5. Arbitray waveform defined by user
6. Versatile modulation and variety of waveforms:
7. Versatile input and output:
External modulation source, External clock reference
(10 MHz), External trigger input, waveforms output,
8. High accuracy and wide band width frequency counter
9. USB Host, to support USB disk storage
10. Seamless connectivity with DS series digital
oscilloscopes: Lossless recurrence of stored waveforms
11. Multi-language user interface, built-in help system
Sine, Square, Ramp, Pulse, Noise, Exponential Rise, Exponential Fall, Sinc, Cardiac, DC
Sine, Square, Ramp, Arbitrary Waveform
Sine, Square, Ramp, Triangle?Noise, Arbitrary Waveform(2 mHz to 20 kHz)
Sine, Square, Ramp, Triangle,Noise, Arbitrary Waveform(2 mHz to 20 kHz)
50% duty cycle Square(2 mHz to 50 kHz)
Fall Edge of Sync Signal(frequency alterable)
Sine, Square, Ramp, Pulse, Noise, Arbitrary Waveform
count 1 to 50,000 cycles, infinite,gated
Frequency,Period,Pulse width(positive&negative),Duty cycle
Single channel: 100 mHz ~ 200MHz
Worldwide Use, 100~240 VACRMS/ 40 W Max
- User manual and PC Remote software are downloadable from Rigol Web Site
Don't hesitate to ask if you have inquiry.
