Tool maker lathe or grinder parts, fixtures, accessorie

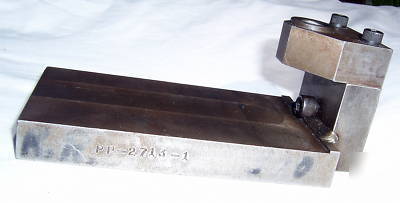

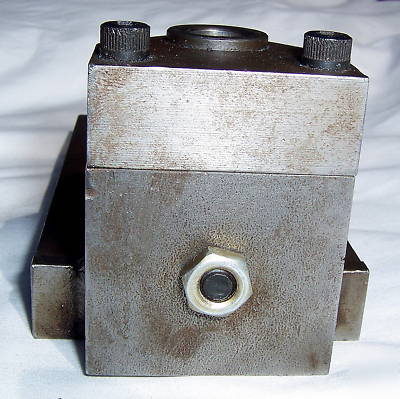

The largest fixture is 15.8cm x 7.6cm wide. The base with the screw in it is 6.3cm x 5.1cm and the piece with the sleeve through it is 5.1cm x 4.4cm. The sleeve is marked SL43 and is 1.3cm in diameter. It is stamped PP-2713-1 on the side.

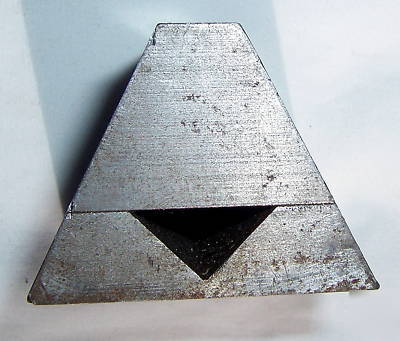

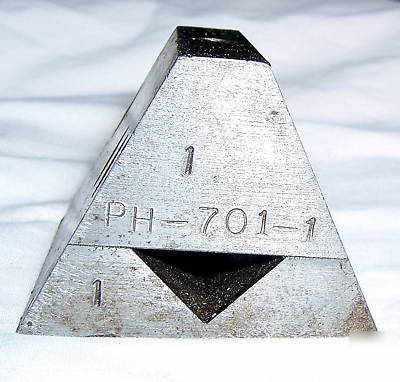

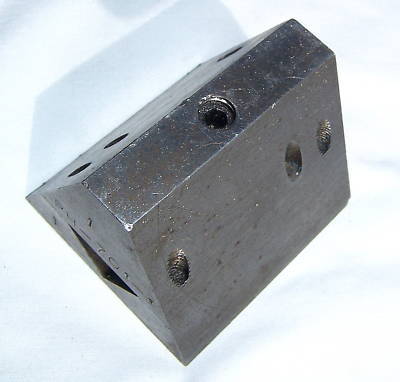

The pyramid shaped fixture is marked PH-701-1 . The base is 5.4cm x 5cm and 4 set screws run through it. It has a v in the middle of it. The top piece is like a pyramid with the top cut off and it has 1 screw running down through the center which protrudes into the v of the bottom piece (presumably to secure something in the v ). The overall height is 3.8cm.

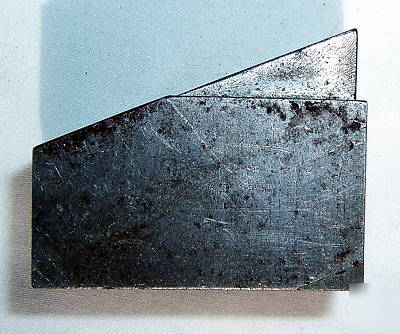

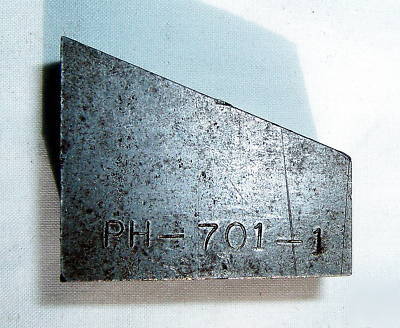

The small angular fixture is marked PH-701-1 as well. It is 8.3x1.9x3.2cm (the lat being height at the point).

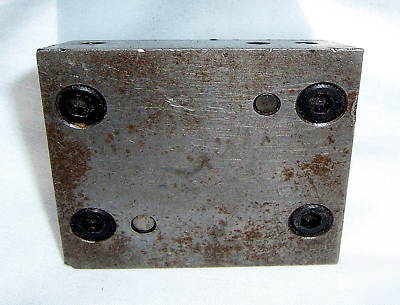

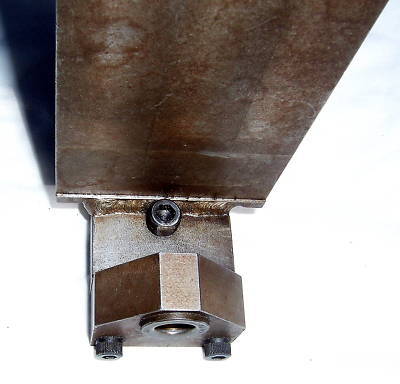

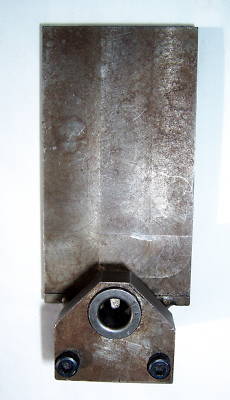

The other fixture is a plate measuring 10.1x4.6x1.2cm with a 1.2x1.2cm block attached.
If you need details on any other item or have questions please email me.
