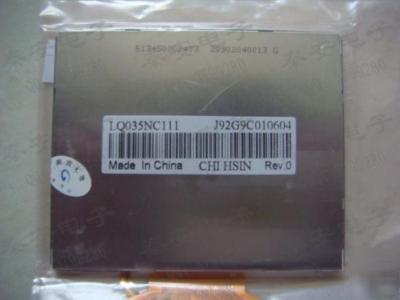

3.5INCH tft lcd LQ035NC111, 320　x　240, with av board

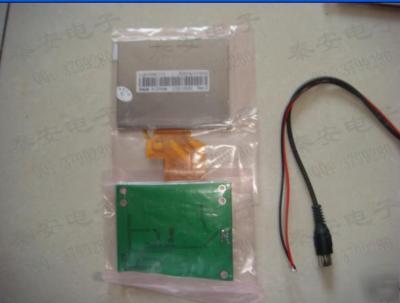

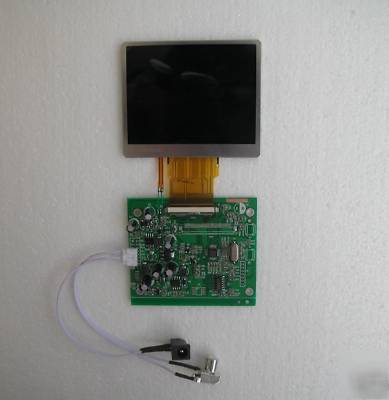

LQ035NC111 with AV input controller board, total price 50USD/set. Great as cool mini VCD/DVD displayer.
The spec of the LCD is as bellowing:
Screen size :3.45(Diagonal) inch
Display Format :320 RGB x 240 Dot
Active area :70.08(H) x 52.56(V) mm
Pixel Configuration: RGB-Stripe
Outline dimension: 76.9(W) x 63.9(H) x 3.3(D) mm
Display Mode: Normally white/Transmissive
Input Interface :Digital 24-bit RGB/SERIAL RGB/CCIR656/CCIR601
View Angle direction: 6 o clock
Operation Temperature -20 70
