New meterman PM55 multimeter - lot of 10 units - brand

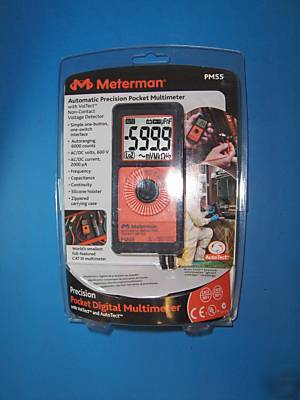

Meterman PM55 Automatic Precision Pocket Multimeter
Our Price: $275.00($27.50/unit)
You Save: $254.50($25.45/unit)
The ultimate shirt-pocket sized meter. Only 3/8" thick and less than 3 oz in weight with full functionality offering ac and
dc voltage to 600 V, ac and dc current to 2000 A, resistance to 6 Megohm, capacitance to 2000 F, frequency to 30 kHz,
diode test and continuity w/beeper. It also offers VolTect, a built-in, non-contact voltage detector for ac voltages.
Another key feature is AutoTect, which automatically selects between ac voltage, dc voltage or resistance measurement
based on the test point to which the leads are connected. Fully autoranging, this meter offers nine different measurement
functions plus features that are usually found in much more expensive and larger meters. The digital display is oversized
with large digits and unit icons in the display. In spite of its size, this meter is fully safety rated to CAT III 300 V, CAT II
600 V and is UL listed. No other meter this small offers such performance and high safety ratings.
AutoTect feature directs the meter to know if it is measuring ac volts, dc volts or resistance with no user interface
The AutoTect feature has lower input impedance which zeros out ghost voltages
Measures ac/dc current, capacitance, frequency, continuity with beeper plus includes Voltect,
a built-in, non-contact voltage detector
Complete user protection with full safety ratings of CAT III 300 V, CAT II 600 V
Large oversize digital display
Includes a silicone protective holster, deluxe carrying case, attached test leads, battery and manual
Specified accuracy + 45 d (capacitance not specified)
> 100 dB @ DC, 50 Hz/60 Hz; Rs=1 k
AutoTect Lo-Z V DC: 833 k (4.2 k when displaying AUTO), 90 pF nom.
> +1.2 V dc or < -0.6 V dc nominal
50 Hz - 60 Hz 6.000 V, 60.00 V, 450.0 V
AutoTect Lo-Z V ac: 160 k , 160 pF nominal
> 60 dB @ dc to 60 Hz, Rs=1 k
ACV AutoTect threshold > 1.5 V ac (50 Hz/60 Hz) nominal
1.5 V ac (50 Hz/60 Hz) nominal
100.0 nF, 1000 nF, 10.0 F, 100.0 F, 2000 F3
Typical voltage Bar graph indication
15 V to 55 V 30 V to 85 V 55 V to 145 V 85 V to 190 V above 120 V
Bar graph segments & audible beep tones proportional to field strength
1. Additional 50.00 nF range accuracy is not specified.
2. Accuracies with film capacitor or better
3. Updates > 1 minute on large values
4. Specified with battery voltage above 2.8 V (half full battery). Accuracy decreases gradually to 12% at low battery warning voltage of approx 2.4 V
5. AutoTect is for 6.000 k ~ 6.000 M ranges
6. Add 40 dgt to specified accuracy while reading is below 20 % of range
7. Sensitivity (Sine-rms): Hz in Auto-V position:> 3 V
8. Line-level Hz in V position: @6.000 V ac range: > 3 V; @60.00 V ac range: > 6 V; @600.0 V ac range: > 60 V
3-5/6 digits 6000 counts; Updates 5 per second nominal
Max. 80 % R.H. up to 31 C, decreasing linearly to 50 % R.H. at 40 C
-20 C ~ 60 C, < 80 % R.H. (with battery removed)
Nominal 0.15 x (specified accuracy)/ C @ (0 C ~ 18 C or 28 C ~ 40 C), or otherwise specified
3 V standard button battery x 1 (IEC-CR2032; ANSI-NEDA-5004LC)
6 mA for voltage functions on Auto-V position & 2 mA for other functions
Automatic Power Off (APO) timing
L 113 mm x W 53 mm x H 10.2 mm (4.4 x 2.1 x 0.4 in)
AutoTect (Automatic V & selection) and VolTect (Electric Field Detection)
Meets IEC61010-1, UL61010B-1, CAN/CSA-C22.2 No. 1010.1-92,CAT II 600 V and CAT III 300 V, Pollution Degree 2, Class 2 E.M.C. Meets EN61326
