2X melles griot hene tube mount bracket holder 1.75IN

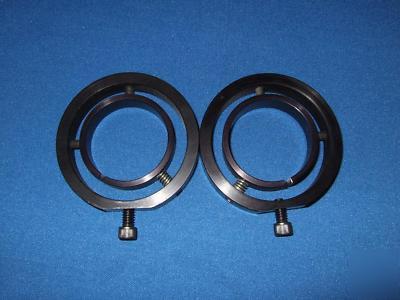

2X Melles Griot HeNe Laser Mount
The outter mounting bracket has an outside diameter of 3 inches, innner ring has an inside diameter of 1.75inches.
A 1/4-20 bolt threads into the outside bracket, this holds the brackets to your work surface.
These mounts have been previously used to hold Melles Griot 05-LHR-151, and might have some surface scratches.
Outside diameter of your HeNe tube should be around 1.75inches plus/minus 1/8".
This image shows the brackets mounted on the HeNe, the Tube is NOT included.
