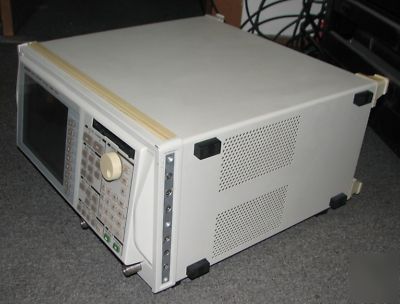

Advantest R3765C vector network analyzer 40MHZ - 3.8GHZ


The VNA has a wide frequency range of 40MHz to 3.8GHz
High sweep speeds of .15ms (Normalized calibration) and .25ms (full 2 port calibration).

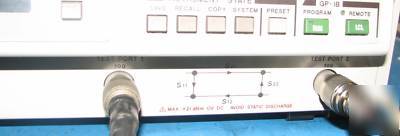

S parameter test set built in allows measureing forward characteristics (S11, S21) and reverse characteristics (S22, S12) with auto reversing and high accuracy.

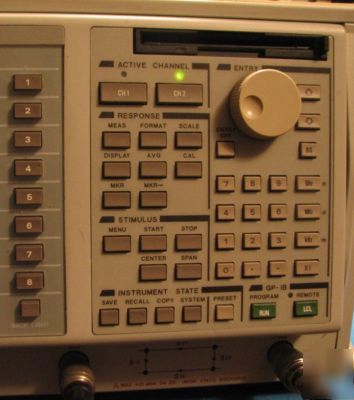

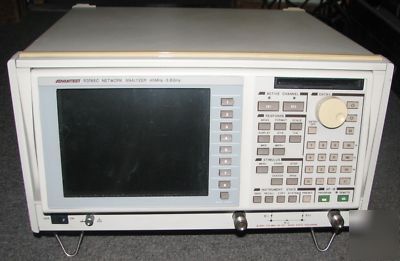

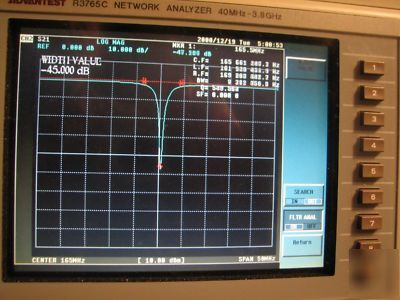

The VNA can measure the amplitude, phase, group delay and impedance of electronic devices with precision at high speeds in the 40MHz to 3.8GHz range. The use of newly developed high-speed signal processing architecture enables meaurements of .15ms per point (normalized calibration) and .25ms per point (2 port full calibration). Full color TFT LCD screen and tiltable front panel.
A CD is included containing the data sheet and 369 page operation manual.
