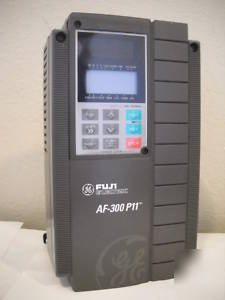

Ge fuji af-300 P11 10HP 6KP1143010X1B1
NEMA 1 and 12: Intended for indoor use only, less then 1000 meters (3300ft.) elevation, not
in contact with corrosive gas, oil mist, dust or direct sunlight.
NEMA 4: Intended for use indoors or outdoors to protect the enclosed equipment against
splashing water, seepage of water, falling or hose directed water and severe external
condensation. Installation should be less then 1000 meters (3300ft.) elevation, not
Ambient Temperature -10 to 50 C (ratings up to 30 Hp requires ventilating covers be removed over 40 C).
Ambient Humidity 5 to 95% (non-condensing)
Vibration 3mm peak from 2 to 9 Hz, 9.8m/s
2 from 9 to 20 Hz, 2m/s2 from 20-55 Hz,
Enclosure Type NEMA 1 standard; NEMA 4 and 12 available
Communication Interface RS485 RTU standard
Power System 380-480 VAC +10% to -15%, 50/60 Hz +5% to -5%
Power Supply Control System Sinusoidal PWM with dynamic torque vector control
Frequency Control Range .1 to 120 Hz
460 VAC: 3 phase, 380V, 400V, 415V / 50 Hz. 380V, 440V, 460V / 60 Hz
Carrier Frequency 0.75 to 15 KHz (up to 30 Hp), 0.75 to 10 KHz (40 to 100 Hp) 0.75 to 6 KHz (125 Hp and above)
Frequency Fluctuation Digital setting: +/- 0.01% of max. frequency (@-10 C to 50 C)
Analog setting: +/- 0.2% of max. frequency (@ 25 C +/- 10 C)
Frequency Resolution Digital setting: 0.01 Hz for frequency up to 99.9 Hz (0.1 Hz for frequency > 100 Hz)
Analog setting: 1/3000 of max. frequency
Torque Boost Manual setting code: Variable torque load: 0.1 to 1.9
Accel/Decel Settings 0.01 to 3600 sec. independently adjustable, linear, non-linear & S-curve characteristic
DC Braking Frequency activation Hz= >0.1 to 60 Hz, operating time; 0.1 to 30 sec. Voltage 0 to 80%
Torque Vector Control Optimizes drive operation
Select Standard Functions Slip compensation, torque limit control, switch from line to inverter, restart after
instantaneous power failure, 3 jump frequencies, bias frequency, pattern operation &
Momentary Voltage Dip Drive can operate for 15 millisec, with 85% of full load applied.
Frequency Setting Input Potentiometer or voltage input: 0 to 10 VDC, adjusts to 5 VDC
Process follower input: 4 to 20 mA DC (external), adjusts to 10 mA
Input Signal (contacts) Forward-Reverse, self-hold selection, 15 preset speed levels, acceleration/deceleration
time selection, coast to stop, external alarm input & alarm reset input.
Output Signal 2 Relay outputs: Fault alarm, selectable from 32 parameters: SPDT, 250 VAC, .3A Inductive
Protection Current limit, instantaneous overcurrent, torque limit, overload, overvoltage
incoming transients, undervoltage & overheating, short circuit & ground fault for output,
motor & dynamic braking overheating, stall protection & setup error
Keypad Panel (LED) Output frequency, current, voltage, torque, motor RPM, line speed & machine speed,
Keypad Menu (LCD) Nine menu selections from DATA SET, DATA CHECK, OPR MNTR, I/O CHECK,MAINTENANCE, LOAD FCTR, ALM INF, ALM CAUSE, DATA COPY with back lit display.
Keypad extension cable, Dynamic braking, AC Line Reactors, PWM output filter, Analog
I/O, Digital Tachometer, Relay output, multiple network options such as LonWork for
AF-300 P11 is a trademark of General Electric Company.
