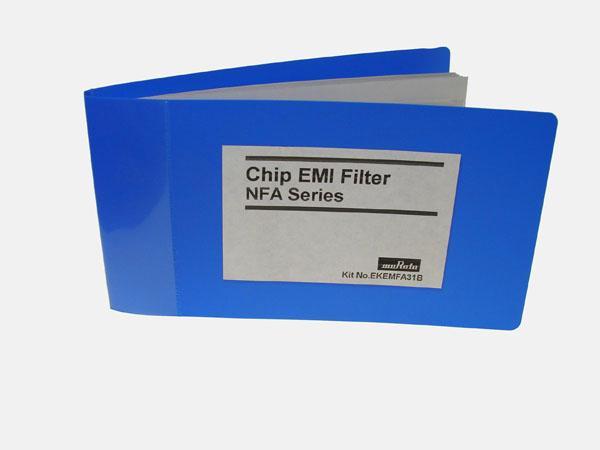

Murata NFA Series EMI Filter Sample Book EKEMFA31B
NFA31C series is a chip EMI suppression filter for surface mount applications using Murata's ceramic processing technology and filter design technology. The series is well suited for EMI suppression in digital I/O lines of varied electronic equipment such as notebook size PCs.
* High density mounting can be realized because of 4 circuits in one package with 0.8mm pitch.
* Suitable for high frequency noise suppression because of low residual inductance of three terminal structure.
* Excellent EMI suppression can be realized because of two terminal simple GNDs for 4 circuits.
* Personal computers and peripherals
* Telephones, PPCs, communications equipment
Includes 20 pcs of each of the following part numbers: NFA31CC220S1E4, NFA31CC470S1E4, NFA31CC101S1E4, NFA31CC221S1E4, NFA31CC471S1E4, NFA31CC102S1E4, NFA31CC222S1E4, NFA31CC223S1E4, NFA31GD1006R84, NFA31GD1004704, NFA31GD1001014,NFA31GD4706R84, NFA31GD4704704, NFA31GD4701014, NFA31GD1016R84, NFA31GD1014704, NFA31GD1011014
