New brand SMT2010 table-top reflow oven lead-free

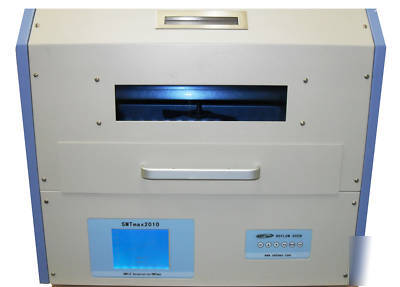

Brand New SMT2010 TABLE-TOP REFLOW OVEN LEAD-FREE
This is a brand new, SMT2010 Reflow oven. More and more surface mount devices (SMD) are used on electronic circuit boards. Large floor model reflow ovens are expensive and heavy, not suitable for prototype development and small production. SMT2010 is specially developed to suit this market.
Full automatic fuzzy logic temperature control.
Can be used for any surface mount components.
Can also be used for two sides PCB boards.
Great for repair preheating.
Working area: 400mmx350mmX30mm.
External measurement: 600mm(w) x450mm (d) x500mm (h).
Working cycle 5 minutes per board.
Built in automatic air cool.
One profile stored in EPROM.
No programming necessary, no computer interface.
Weight: 32Kg without the packing material.
* It is very important to keep in mind that the displayed temperature is the sensor temperature. It may differ significantly from the PCB board temperature if the sensor is not placed properly. Also, if the oven model is with a sensor hanging above the PCB board, the displayed temperature is the air temperature.
* The optimum reflow starting temperature is at 80 C to 90 C. If the starting temperature is much lower than 80 C, the front draw can be opened to stop the current process when the temperature reaches 90 C, and start it again immediately at that temperature.
* Let the reflow oven cool down for 30 minutes after four hours of continues working.
* Check the heat tubes inside the reflow oven at least once a year, or as necessary. The back panel needs to be opened to do this.
* PCB board size: It is recommended to place extremely small boards(like 1"x1" or smaller) on a big unused PCB board or aluminum foil to increase heat absorption. Very large PCB board may also need to increase temperatures and time.
* PCB board layers: the more the board layers, the higher the temperatures should be.
* For the same batch of boards, if some are finished fine and some not, the profile temperatures or time are not enough. Adjust them higher or longer.
* It is recommended to increase or decrease the preheat or reflow temperatures by 5 C every adjustment.
* For double side board, first cook one side, then the other. No need to use glue.
* Operational manual/ software
* RS-232 Computer interface cable
Even temperature distribution. CPU closed loop temperature control, digital display, zero Voltage heater switching. Dedicated power and heating switches. ESD safe. External temperature calibration. Hinged hood creates an oven like environment for reflow. Two heating states optional (Pre-heating reflow)
