Solderless breadboard 3520 pts 5V regulator adapter kit


It is an invaluable tool for the most demanding prototyping and design applications, whether in the R&D or University lab. They are the reusable solderless device used to build a (generally temporary) prototype of an electronic circuit and for experimenting with circuit designs. Because no soldering is required, modifying or revising the circuits can be done quite easily, without the need for any tools and without the risk of overheating or damaging the board. The breadboard consists of a set of formed metal sockets inserted into a durable plastic housing, holding them firmly in place. The breadboard pattern is a useful combination of isolated tie points, which serve as discrete points in the circuit, as well as a continuous bus structure, which serves to distribute power and provide common ground points.

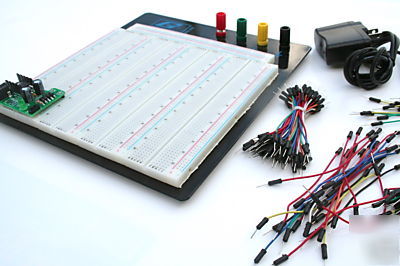

The breadboard allows the design and change circuits quickly and cleanly. Breadboards accommodate all sizes of DIPs and discrete components with lead diameters up to 0.032 . Interconnect with solid hook-up wires (#22 AWG recommended). Wires and components can be used and re-used many times without damage to board or components. 3,520 tie points, 4 terminal strips, 7 bus strips, 4 blinding posts mounted on an aluminum black plate 8 2/8 W x 9 3/8 L x 3/8 H.
Standard 0.1 (2.54mm) hole spacing
Highest quality flexible cable jumper wires
They are the highest quality flexible cable jumper wires. This type of breadboard cable wires are most preferred. Wires are flexible, durable, reusable, easy to trace, easy to connect and disconnect. Quality projects deserve use of this quality breadboard COMBO.
+5V Breadboard Regulator Board (KIT)
This BB-SUP-KIT is a power supply kit for the solderless breadboard. It takes power from the 2.1mm DC wall adapter or any DC voltage supply. This is 5V 1A option, which use L7805ABV voltage regulator IC. It is design so the user can easily use inexpensive wall adapter to power up electronic circuitry on the breadboard.
This board features innovations that set it apart from other voltage regulator boards. Innovations feature like dual input voltage sources (2.1mm power jack is primary source, both sources can be hook up at the same time), heat sink on the voltage regulator (better heat transfer), power ON LED indicator and ON/OFF switch. After assembly, you can plug the BB-SUP-KIT directly on to the breadboard. The board is small and compact in size 1.96 x 1.50 inches.
The kit comes all of the parts and easy to assembled. Please check Parts List document for more detail. There is a beginning experience with soldering iron required. Please see Assembly Instruction for more detail.
Flexible output voltage and current (5V 1A)
Automatic Convert Input Voltage Polarity
High quality double sided PCB
Schematic: BB-SUP-KIT Schematic
Parts List: BB-SUP-KIT Parts List
Assembly Instruction: BB-SUP-KIT Assembly Instruction
User Manual: BB-SUP-KIT User Manual
It is a switching supply wall adapter. This AC adapter can use directly with BB-SUP-KIT board or may be compatible with many products. It is also good for all electronic experiment!
With this kit, you are ready to work on any 5V microcontroller or logic circuit!
Items included for this action:
+5V Regulator Board (BB-SUP-KIT)
9V 1A slim switching wall adapter
You get all of them! Hurry, supplies are limited.
