Xilinx spartan-3E fpga+arm+usb-2 development board

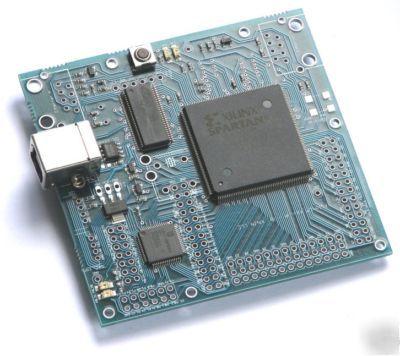

Xylo-LM FPGA development board
* Xilinx Spartan-3E 500K gates FPGA with 4Mbit FPGA boot-PROM, ARM processor Philips LPC2138, SDRAM 64 Mbits, two Ethernet 10BASE-T
* USB-2 high-speed link allows to configure the FPGA, program the FPGA boot-PROM, and control the ARM processor.
* The board is very easy to use and learn. You'll be able to program the FPGA and talk to the ARM processor in minutes. The board also has an I2C master (to connect to slow peripherals), a fast secondary connector (to connect to a graphic LCD for example), and is Flashy compatible (to create a digital oscilloscope). All you need is a USB cable and free development tools to write software for both the FPGA and ARM (Xilinx ISE Webpack for the FPGA and OpenOCD + the GNU ARM toolchain for the LPC2138). No need for JTAG or other hardware/software development tools.
* Complete board documentation available here (FPGA) and here (ARM).
