Angle plate step toolmaker machist tapped 1/4 ground 3B

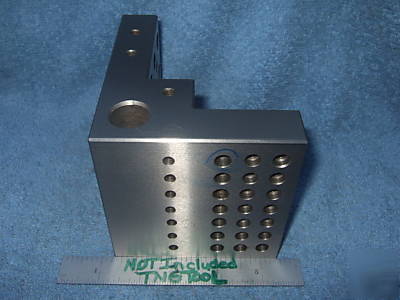

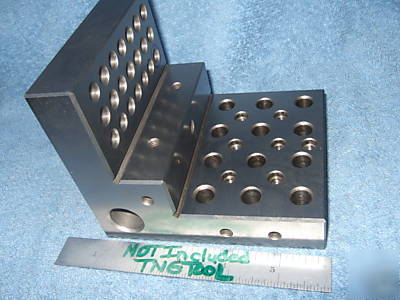

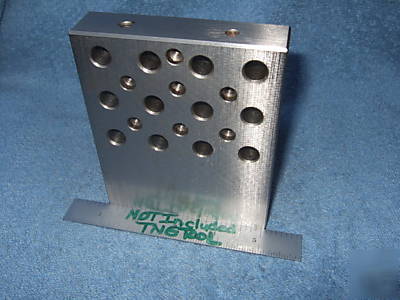

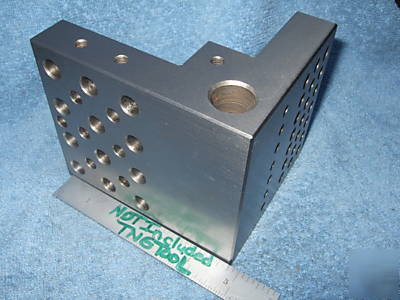

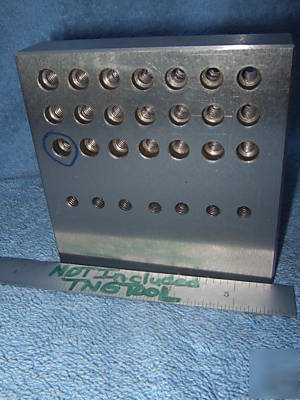

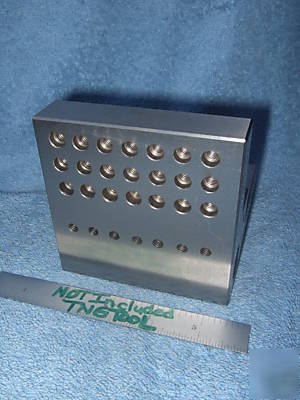

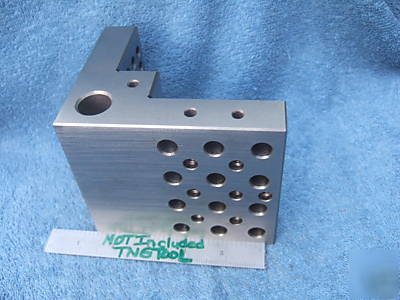

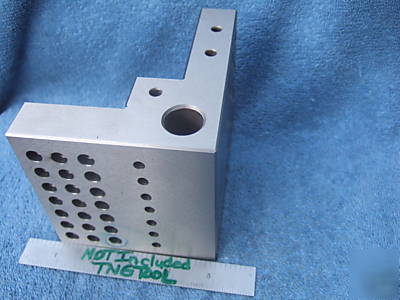

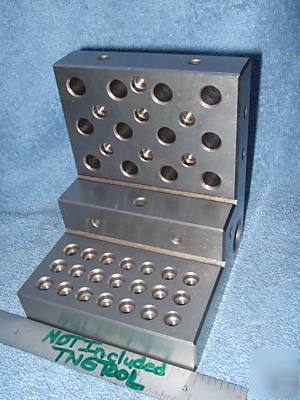

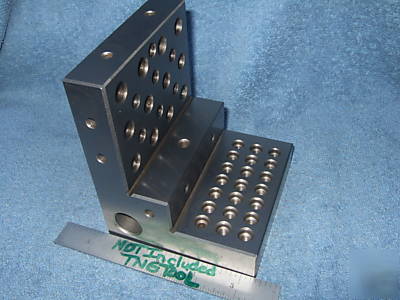

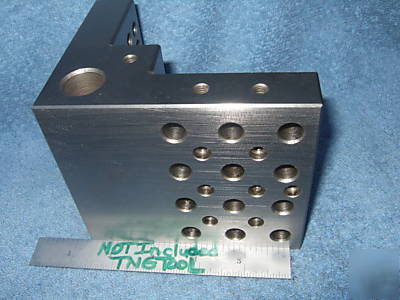

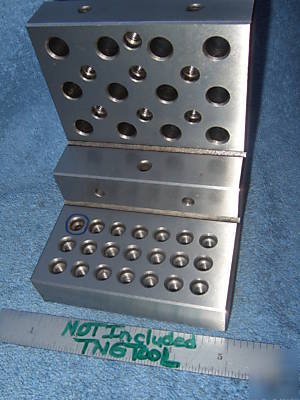

ANGLE PLATE WITH STEP IN EXCELLENT SHAPE AS SHOWN. I HAVE SEVERAL ANGLE PLATES LISTED THAT ARE VERY CLOSE TO EACH OTHER IN OVERALL SIZE. SEE MY OTHER ANGLE PLATES. CHECK THE SUPER SIZE PICS ! PLATE MEASURES 4.131" WIDE X 4.965" TALL X 4.142" TALL. ANGLE BLOCK HAS (46 TOTAL) TAPPED 1/4" X 20 HOLES AND (12) 3/8" REAMED HOLES IN LONGEST FACE AS SHOWN. STEP MEASURES 1.023" X 1.0220" WITH (3) TAPPED 1/4" X 20 HOLES IN STEP AS SHOWN. BLOCK HAS BEEN FRESHLY GROUND USING HERMANN SCHMIDT SQUARING BLOCK AND PRECISION CHAMFERED. ALL TAPPED HOLES (BUT ONE CIRCLED IN BLUE) LOOK TO BE IN GOOD SHAPE WITH NOTHING BROKE OFF IN THEM OR ANY CHIPPED HOLES. SUPER NICE AMERICAN TOOLMAKER MADE ANGLE PLATE MADE HERE IN THE U. S. A.
