The P6060 is a precision passive probe with 10X attenuation, for use with TEKTRONIX low and mid-frequency oscilloscopes used in differential applications. The precise attenuation also provides greater accuracy for single-ended input applications, such as amplitude measurements with a differential comparator. The probe can be compensated for use with any amplifier input having a nominal input capacitance of 15 to 55 pF and input resistance of 1 M .
The BNC-type connector utilizes a special grounding clip to shift the deflection factor indicator to 10X normal reading in 5000-Series oscilloscopes.

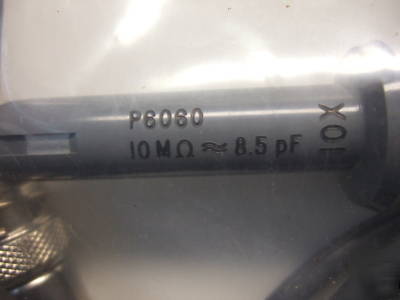

Input Capacitance : approx. 6.0pF (3.5 ft. cable)
Compensation Range : 15pF to 55pF
Readout Pin : Yes (5000 series only)
Max Rated Voltage : 1.5 KV RMS
10X - Accuracy when used with a 1 M 0.15% instrument input will be within 0.4%
When used with a 1 M 2% instrument input the accuracy will be within 2%
10 M within 0.25% with a 1 M 0.15% instrument input;
10 M within 0.4% when used with a 1 M 2% instrument input.
for 15 pF instruments is @6.0 pF with 3.5 ft. probe and @ 7.7 pF with 6 ft;
with 55 pF instruments it is @9.5 pF with the 3.5 ft, @11.5 pF for the 6 ft.
At least 400:1 (with 5A20N or 5A21N) dc to 30 kHz
3.5 ft probe at least 40 MHz (with scope bandwidth of at least 60 MHz);
6 ft probe at least 30 MHz (with scope bandwidth of at least 60 MHz)

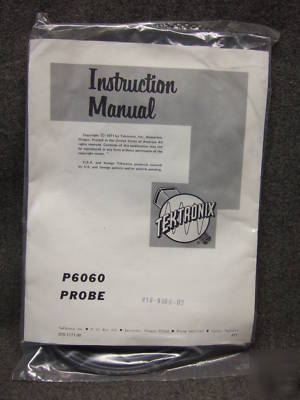

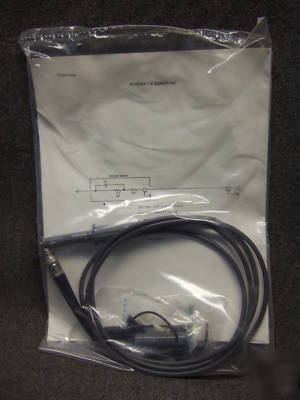

THESE PROBES ARE NEW STILL IN THE ORIGINAL PACKAGING
