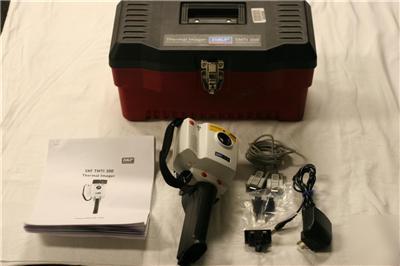

Skf tmti-300 thermal imaging camera in hard carry case


iPaq type synchronization cable
2m RS232 connection cable - imager to PC
Compaq IPAQ 38xx/39xx/54xx S/N # 0508221396
Easy-to-use, light weight, one or two handed operation allows the TMTI 300 to be flexible and used for most industrial applications
Non-contact measurement technique enables measurements to be made safely on running equipment
Large thermal image storage capacity, 1000 images per Mb can be stored on Pocket PC/storage card. Easy for data collection and subsequent reporting
Two user defined spot temperature measurement points allow comparison of areas of interest. The temperature difference of the 2 spots is displayed as a separate value
Both PC and Pocket PC compatible allowing flexibility in viewing results and report writing
Laser pointer shows the size of a pixel, allowing the area of interest to be pinpointed and for accurate temperature measurement
Convenient temperature measurement in K, C and F eliminates the necessity to convert temperature reading
3 different selectable color pallets (green/blue, red/blue, grayscale) for ease of viewing
Ideal complement to other condition monitoring techniques, such as vibration analysis
A Pocket PC is required in order to view images.
Temperature measurement: Range -10 to 300 C (14 to 572 F)
Field of view (FOV): 20 x 20
Sensitivity: ~0.3 K @ 30 C (@ 102.2 F)
Range: 0.7m - infinity (2.29 ft - infinity)
Image storage: Up to 1000 images per Mb of Memory.
Battery: 4 x AA (LR6) alkaline batteries
Housing: Impact resistant plastic
Dimensions: 120x125x80 mm (3.72x4.92x3.1 in)
Weight: <600g (21.16 oz) not including
Mounting: Handheld & tripod mounting
Temp. operating range: -5 to 50 C (23 to 122 F)
Humidity: 10% to 90% non condensing
Temp. storage range: -20 to 80 C (-4 to 176 F)
EMC DIRECTIVE 89/336/EEC as outlined
in harmonized norm for Emission EN 50081-1,
EN 55011 (B) Immunity EN 50082-2,
Laser conformance: USA 21, CFR 1040.10
Compatible with most 'Pocket PC'
devices running Microsoft 'Pocket PC'
RS 232 to 'Pocket PC' communication
cable or CompactFlash RS 232 adaptor
IBM compatible PC with a minimum of:
RS 232 serial port (115k Baud),
16 bit color graphics capability
