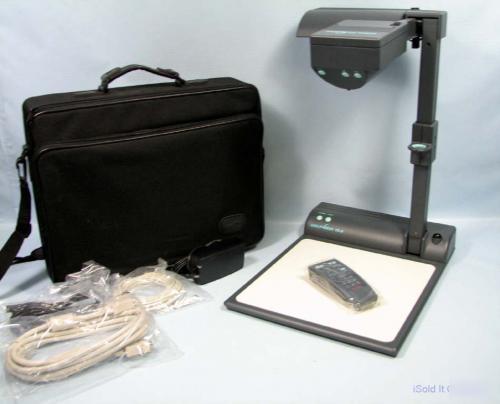

Wolfvision vz-8 visualizer


* WOLFVISION VZ-8 VISUALIZER
* Camera: 1/3" 1-CCD Progressive Scan
* Output Signals: SXGA/XGA/SVGA, PAL/NTSC, DVI, USB
* Pictures Per second (as picked up by the camera): 20
* Horizontal Resolution: 640 lines (center)
* Vertical Resolution: 490 lines (center) - 640 lines in Image Turn Mode
* Image Turn Mode: 40% increased resolution of full pages
* Effective Pixels: 810,000
* Vertical Image-Frequency: Prog Scan: 75 Hz and 60 Hz, PAL: 50 Hz, NTSC: 60 Hz
* Horizontal Image-Frequency: 15.7 and 37.3 - 80.2 kHz
* Signal Format: non-interlaced and interlaced
* Iris: automatic and manual
* White Balance Adjustment: Auto tracking, on push or manual
* Auto Focus: yes, one push
* Text Enhancement Function: yes (in color)
* User Programmable basic setup: yes (with on screen menu)
* Lens/Zoom: 24 x zoom (12 x optical and 2 x digital)
* Maximum Pickup Area: On working surface: 360 x 270mm (14.4" x 10.8", Outside of working surface: unlimited
* Minimum Pick-up Area (full resolution): 32 x 24mm (1.2" x 0.9")
* Minimum Pick-up Area (digital zoom): 16 x 12mm (0.6" x 0.5")
* Maximum object height on working surface: 110mm (4.4") in tele position / 370mm (15") in wide position
* Depth of Focus: 18mm (0.7") on small objects (42 x 33mm / 200mm (8") on large objects (360 x 270mm)
* Light Source: high frequency fluorescent lamp
* Reflection free area on working surface: 360 x 230 (17.3" x 9.2")
* Recording outside surface: yes
* User Programmable Presets: 3
* Image Memory: 9 pictures
* Split-image of 9 Pictures in Memory: yes
* Positive/Negative and Black-White switch: yes (in menu)
* Outputs: RGBHV (15-pin VGA-Plug), DVI, USB, composite video (RCA-Pug) and S-Video (4-pin), 12v
* Inputs: RGBHV (15-Pin VGA-Plug) for PCs, serial control input
* Accessories: remote, power pack, RGBHV cable, USB cable, USB software, manual, carry case
All in state residents within California will be charged state and/or local sales tax (8.375%) at the time of checkout.
Returns must be made within 3 days after recieving the item. Item must be returned in original unopened condition.
