1998 harig 612 ballway hand feed surface grinder

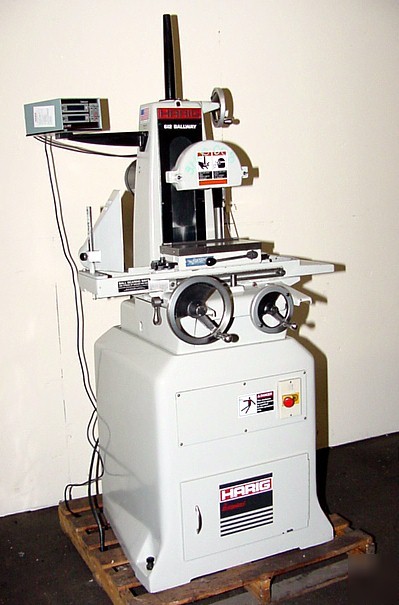

1998 HARIG 612 BALLWAY HAND FEED SURFACE GRINDER
6" X 12" HARIG (MADE IN USA) "PRECISION" HAND FEED
"BALLWAY" SURFACE GRINDER W/CAST IRON BASE
& "ACU-RITE" "QWIKCOUNT" 2-AXIS DIGITAL READOUT DISPLAY
MODEL: 612 BALLWAY S/N: B-18958 NEW: 1998
WIDTH AND LENGTH GROUND ...................... 6" X 12"
LONGITUDINAL TRAVEL ........................... 12-3/4"
VERTICAL WORKING HEIGHT UNDER 7" WHEEL ............ 12"
MAXIMUM GRINDING WHEEL DIAMETER .................... 8"
ELEVATING HANDWHEEL GRAD. ..................... 0.0001"
CROSS FEED HANDWHEEL GRAD. ..................... 0.001"
SPINDLE SPEED ............................... 3,450 RPM
FLOOR AREA CABINET .......................... 21" X 25"
FLOOR AREA OPERATING SPACE .................. 48" X 45"
APPROXIMATE MACHINE WEIGHT .................. 1,300 LBS
"ACU-RITE" "QWIKCOUNT" 2-AXIS DIGITAL READOUT DISPLAY
"BALL WAY" DESIGN - FINGER TIP OPERATION
SMOOTH GLIDING CABLE-DRIVE TABLE
HARIG 1.5 HP 3/60/208-230-460 VOLT DIRECT DRIVE
HARIG "FLO-CLEAN" AUTOMATIC LUBRICATION SYSTEM
6" X 12" WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK
SPINDLE MOTOR IS 3/6-/208-230-460 VOLTS
*INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE*
** ORIGINAL PAINT; "EXCEPTIONAL" CONDITION & APPEARANCE **
