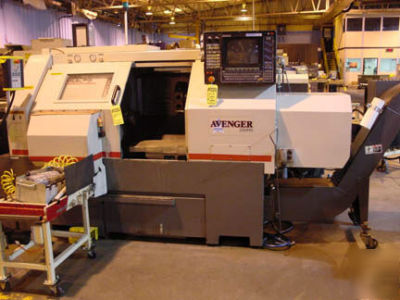

#250MS cin-milacron "avenger" cnc turning center #25801
#250MS CINCINNATI-MILACRON "AVENGER" CNC
TURNING CENTER W/SUB SPINDLE & LIVE MILLING
New 1997, Serial No 3650BMS97-007, Model 250MS
Acramatic #850SX CNC Control w/CRT
Sub Spindle C-Axis Live Milling On Tool Turret
14' LNS "Mini-Sprint" Hydraulic Bar Feed
Tool Probe - Tailstock, Programmable
12-Position Double End Turret: (12 Live Positions)
Coolant System - Jorgenson Chip Conveyor
Spindle Bore, Diameter.................. 3.15"
Hole Thru Spindle....................... 2.62"
Chuck Diameter.......................... 10"
Swing, Maximum.......................... 23.54"
Machining Diameter, Maximum............. 10.55"
Machining Length, Maximum............... 19.74"
Carriage Travel (Z-Axis)................ 17.52"
Cross Slide Travel (X-Axis)............. 7.09"
Travel Sub Spindle (W-Axis)............. 21.65"
Main Spindle Speeds, Range.............. 24 to 4000 RPM
Main Spindle Contouring Speed (C-Axis).. 0 to 100 RPM
Tool Turret Speeds, Range............... 40 to 4000 RPM
Sub-Spindle Speeds, Range............... 24 to 5000 RPM
W-Axis Feed Rate, Range................. 0.1 to 400 IPM
Z-Axis Rapid Traverse Rate.............. 944 IPM
W & X-Axis Rapid Traverse Rates......... 787 IPM
Main Motor, Horsepower.................. 30 HP
Milling Motor, Horsepower............... 8 HP
Sub-Spindle Motor, Horsepower........... 10 HP
Weight Approximately.................... 11,300 LBS
PRICE: F.O.B. OUR WAREHOUSE............. $39,500.00
