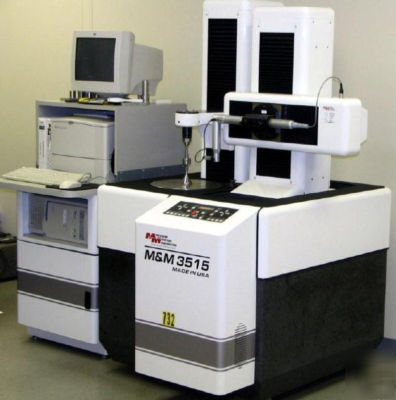

#3515 m&m gear analyzer #25752
Mandrels Tesa Probe Bodies & Probes, Fellows
Involute #614 Master, Fellows #510 Lead Master,
Capable of Measuring Internal Gears, All Manuals
Software Includes: Gear Inspection, Heat Treat
Compare, 3D Tooth Topography, Unknown Gear,
Table Diameter......................... 12"
X-Axis Travel.......................... 8"
Y-Axis Travel.......................... 12"
Z-Axis Travel.......................... 12"
Maximum Part Diameter.................. 15"
Diametral Pitch Module................. 1 to 50.5/25.4 to .5
Helix Angle............................ 0-90 Degree
Maximum Part Weight.................... 300 LBS.
M&M MODEL ODMS-6 DIMENSIONS OVER PINS GAGE WITH
Maximum Measurement.................... 5"
Weight of Basic Gage................... 115 LBS.
Note: New Cost in 2000 was $286,000.00
PRICE: F.O.B. Toledo, OH............... $129,500.00
All machines/eqiupment subject to prior sale.
