Cctv security net dvr 7" lcd 4 sony ccd ir camera diy

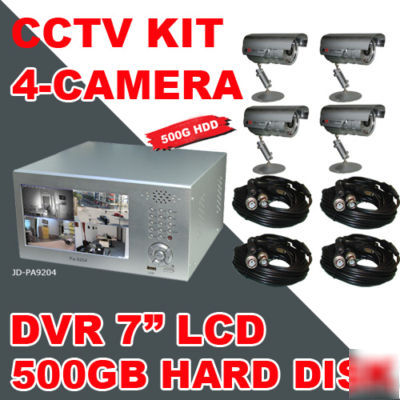

A complete, powerful 4-camera security surveillance system
Plug and Play, easy to install & use
1 x 4-Ch Real-Time Network DVR with Built-in 7" TFT LCD Mon
4 x Waterproof IR Cameras with 1/3" Sony CCD
4 x 10M (33ft) Video + Power Cable + 4 x 12V DC PSU
A complete, professional grade package!
You don't even need a monitor as it 7" LCD built-in.
PA-9204 - 4-CH Real-Time Network DVR w/ 7" LCD Monitor
* Built-in 7" TFT LCD Monitor, easy to operate and use
* Removable hard disk drawer with 500GB SATA hard disk pre-Installed
* Triplex playback/Record/network
* Real-time Display/Record/playback 100/120fps
* Graphic OSD and Mouse Operation
* Built-in Web Monitor software
* Remote configure/ view/ playback/ search/ backup via Net
* 4ch Audio in/2ch Audio out
* 4ch Motion sensor in / 1ch Alarm out
* 2.0 USB Port for backup and firmware upgrade
* 2 extra monitor output ports
* RS485 Pelco protocol PTZ controller
* Motion Detection/Sensor activated/ Video loss Alarm
* High Capacity support HDD 500Gb & up
BNC 4-channel inputs / 2-channel outputs
RCA 4-channel inputs / 2-channel outputs
PAL: CIF(352x288), HD1(704x288)
NTSC: CIF(352x240), HD1(704x240)
PAL: 25fps@D1, 50fps@HD1, 100fps@CIF
NTSC: 30fps@D1, 60fps@HD1, 120fps@CIF
Support to live view with IE (Internet Explorer)
USB mouse, USB disk (backup, upgrade)
Normal play, fast forward, fast rewind, frame by frame
4 sensor inputs / 1 alarm output
AC 110V - 220V (Built-in ATX power supply)
Powerful capability for DVR Model# PA-9204
JE-968 - Waterproof IR Day/Night Camera with 1/3 Sony CCD
* 1/3" Sony CCD with 450TVL Resolution, excellent picture quality
* Waterproof metal body design for both indoor and outdoor applications
* Built-in 35 IR LEDs for night-visions, range > 25M (80ft) (8mm lens)
* Metal bracket is included
* Wireless 2.4Ghz transmission optional
PAL: 512 (H) x 582 (V); NTSC: 512 (H) x 492 (V)
3.6mm Wide Angle (6mm, 8mm, 12mm & 16mm are available)
25M (with 8mm lens, wider angle lens has shorter IR range)
1.0Vp-p 75 Ohms (BNC connector)
Wireless Transmission Frequency
2.4Ghz (this feature is optional see details below)
* 1 x JA-9204 DVR main unit with remote control
* 1 x 500GB Hard Disk (pre-installed)
* 4 x JE-968W Waterproof IR Day/Night CCD Cameras
* 4 x 10M (33ft) Power + Video all-in-one cables
* 12V DC/500mA regulated AC adapters (AC 110V - 220V input)
1. SONY 1/3", 520TV Line resolution CCD upgrade -
2. 2.4Ghz wireless video transmission upgrade (including a 2.4G built-in transmitter and a 4-ch wireless receiver box)
