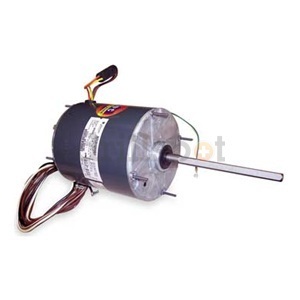

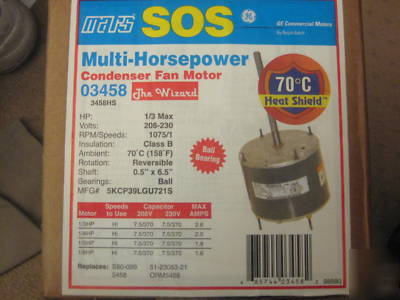

Condenser fan motor 5KCP39LGU721S ge mars sos 03458
Motor Type Permanent Split Capacitor
Enclosure Totally Enclosed Air-Over
Stud Pattern (In.) 3 5/8 x 3 5/8
Features Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs
Capacitor Required 2MDV6 includedin box
Standards UL Recognized (E306343), CSA Certified (MC236833)
GE Heat Shield (TM) High-Ambient PSC Condenser Fan Motors
Design and insulation withstand higher ambient temps. throughout, to run cooler at full rated load.
Quick-change rotation reversal plug. Drain plugs in each endshield. Predrilled holes for Rheem mounting. 48" leads with seal bushing. UL Recognized and CSA Certified. Life-Line multihorsepower models reduce inventory expense.
Uses: Outdoor condenser and heat pump units.
Enclosure: totally enclosed air-over
Stud pattern: 3 5/8 x 3 5/8"
Shaft orientation: any, except 460V models up/down
Please research safety location information, proper thermal protection, and other motor selection information before using this motor.
Condenser Fan Motor, Permanent Split Capacitor, Totally Enclosed Air-Over, 1/6-1/3 HP, Number of Speeds 1, Nameplate RPM 1075, NEMA/IEC Frame 48, Voltage 208-230, 60 Hz, Full Load Amps 2.6, Stud Mounting, Auto Thermal Protection, Insulation Class B, Service Factor 1.00, Ball Bearings, Ambient 70 C, CW/CCW Rotation, Length Less Shaft 5 5/8 In, Shaft Dia 1/2 In, Shaft Length 6 1/2 In, Body Dia 5 5/8 In
