NEW3-ch interpretive ecg ekg machine electrocardiograph

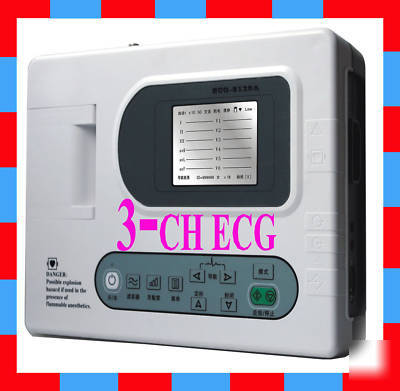

Digital 3-channel interpretive ECG EKG Machine Electrocardiograph
EGC-8130A.jpg picture by medeshop2010
Please kindly note, both the ECG machine&User manual is totally in English!
01.jpg picture by medeshop2010
02.jpg picture by medeshop2010
Z Three channel digital ECG machine with interpretation
Z Inner handhold designed for portability and Light Weight
Z Designed with a high-resolution thermal printer to print out ECG waveform, annotation as well related parameters for diagnosis reference.
Z Roll recording paper for ECG-8130A is 63mm in width and 30m in length. Simultaneously acquisition of 12 lead ECG data, Digital isolation technology is adopted to minimize time/temperature drift of components so as to promote adaptability of the unit to circumstance.
Z Digital filter for effective inhibition of baseline drift, interference, as well automatic position of baseline
Z Function of rhythm lead for observing abnormal ECG waveform & heart rate, Automatic Measurement and Interpretation of ECG waveform to relieve doctors from strain.
Z Multiple print formats include 3-channel, 2-channel, 1-channel, and particularly the one that, combines 3-channel (for leadl-aVF) and 2-channel (for V1-V6).
Z AC/Rechargeable battery for supporting continuous examination when AC power supply is unavailable.
Z For battery operation, ECG-8130A is equipped with a charger & system for battery capacity management and protection itself from excessive discharge.
Z Lifters: AC, HUM, DFT Real-time clock, real-time measurement and presenting of ECG parameter.
Z 8 Patients Save / Copy / Communication.
Z Safety classification IEC60601-1 class I, type CF
Z lead acquisition Synchronously 12 leads
Z Data acquisition 18bit/1000Hz
Z LCD display 320 240 graphic LCD, display status waveform.
Z Record mode Manual mode, AUTO1, AUTO2, AUTO3
Z Filter AC, EMG, Drift Filter
Z Input circuit Floating; Protection circuit against Defibrillator effect
Z Input circuit current 0.1 A
Z Patient current leakage 10 A
Z Frequency response 0.05 ~150Hz
Z Inter-Channel Interference 0.5mm
Z Sensitivity AUTO, 2.5, 5, 10, 20mm/mV
Z Recording mode Thermal Array printing
Z Paper specification 63mmx30m, high sped paper roll
Z Power supply AC: 80~250V, 50/60Hz 1Hz, 30VA
