New anodized air cylinder solenoid haunted house parts
One square inch on the push stroke so that means for every pound of air pressure - PSI - you will get one pound force out. Example, 150 PSI is going to provide 150 pounds of force from the cylinder.

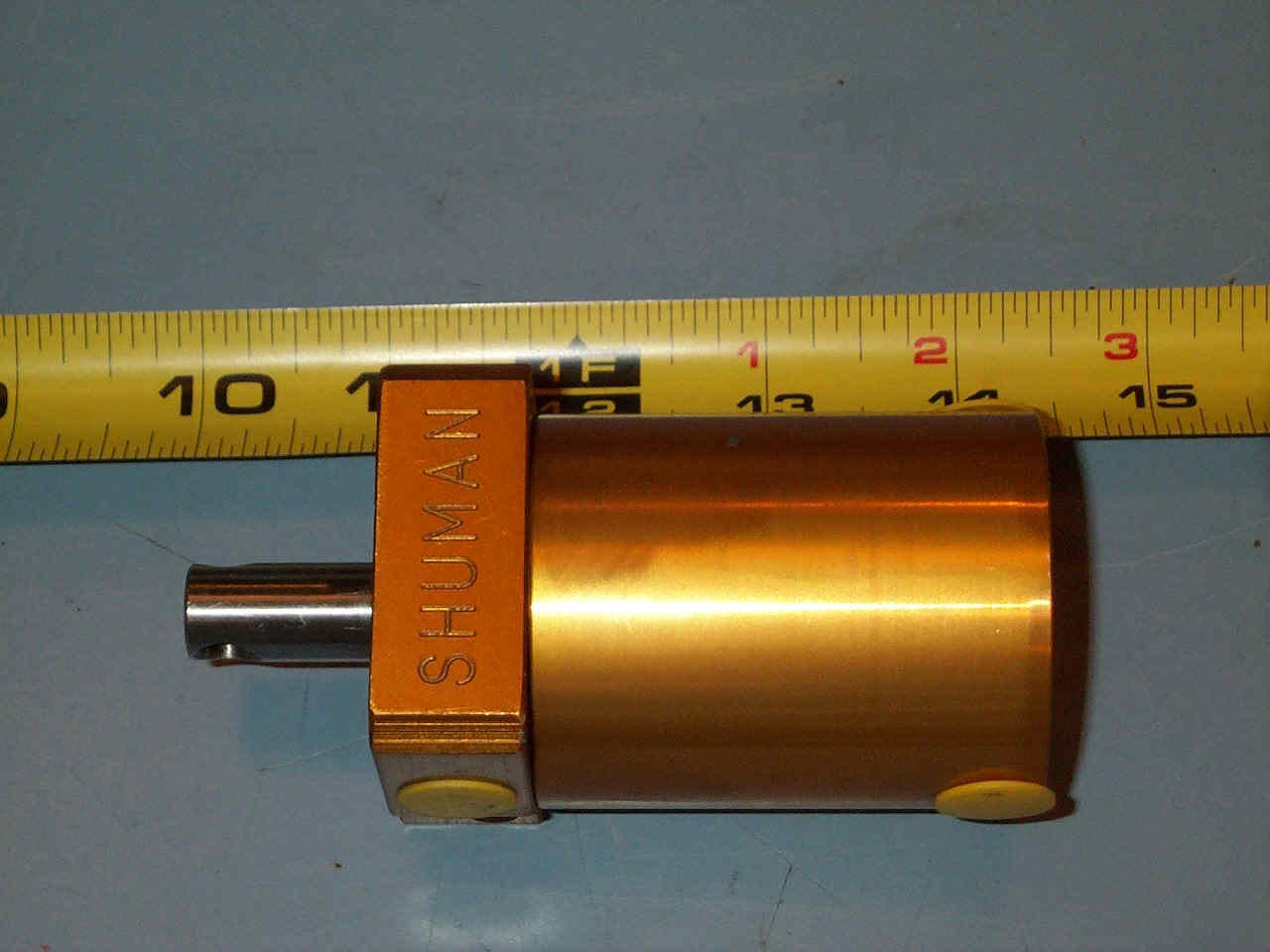

Here are the specs: 1/16" NPT ports - two per side. 1.126" ID, 1/2" shaft, 1-7/8" stroke, 1" protruding when closed, 0.2825" hole in the end of the shaft. Cylinder is 2" OD and 3.25" long. Shaft end has a 2" square face that has the sides of one side milled down, there is also a 0.2060" hole all the way through the smaller milled down portion of the end. That area is 1.65" wide.
WE PULLED ONE APART TO GET THE MEASUREMENTS AND THE PICS, THE ONE YOUR GETTING HAS NOT BEEN TAKEN APART!
Use the "ask seller a question" to contact us with questions or concerns. Please reference Part Number op127 when you contact us.
