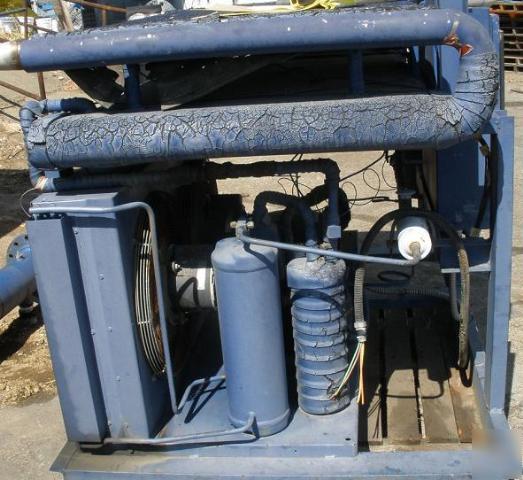

Pioneer R1000A water cooled refrigerated air dryer
PIONEER R1000A WATER COOLED REFRIGERATED AIR DRYER
5HP Compressor (36lbs R22)
2 1/2" NPT In/Out Connection
Approx. 100 BTU/Min (25.2 KCal/Min) per 100 SCFM (170 NM /Hr) to ambient
Approx. 92 BTU/Min (23.2 KCal/Min) per 100 SCFM (170 NM /Hr) to water
Approx. 8 BTU/Min (2.02 KCal/Min) per 100 SCFM (170 NM /Hr) to ambient.
Pressure: 20 PSIG/1.38 BAR G Minimum
Systems of the same capacity.
R Series - designed for use with an aftercooler ASP1100V
In accordance with the NFPA and CAGI standards, the following design conditions apply:
* 100 PSIG/6.89 BAR G inlet
* 100 F/37.8 C ambient
* 5 PSIG/0.35 BAR G maximum pressure drop at rated flow
* 35 F/2 C range pressure dew point
Example: Calculate the capacity of model R500A/W at 90 F/32.2 C inlet temperature, 120 PSIG/8.3 BAR G inlet pressure and 100 F/37.8 C ambient temperature.
Actual capacity = nominal capacity x TC x PC x AC
=500 x 1.15 x 1.04 x 1.0
=598 SCFM/1017 NM3/HR
Product: WATER COOLED REFRIGERATED AIR DRYER
