19" w 14" h scotchman SH1419 220V swivel head horizonta
19" W 14" H Scotchman SH1419 220v Swivel Head HORIZONTA

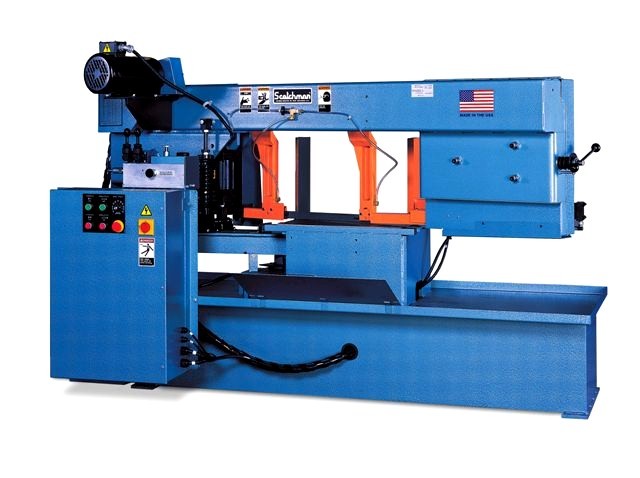

19" Width 14" Height Scotchman SH1419 220v Swivel Head HORIZONTAL BAND SAW, 3 HP 220v 1ph, Hydraulic
MODEL SH1419 SWIVEL HEAD HORIZONTAL BAND SAW
for operation on 220 volt Single Phase
- Head Swings 60 degrees - No Material Movement
- 3 HP Variable Frequency Blade Drive
- Hydraulic Feed Control with Adjustable Rate and Feed Pressure
- Quick Head Approach with Hold for Ease of Line-up
- Hydraulic Full Stroke, Full Capacity Vising
- Infinitely Adjustable Blade Speed via AC Inverter
- Replaceable Steel Wear Plates on Bed
- Recirculating Flood Coolant System w/Splash Guard
- Wash Down Hose with Hanger for Easy Cleanup
- Powered Blade Brush for Straight Cuts and Longer Blade Life
- Saw Blade Guard for Operator Safety
- Instruction and Parts Manual
Technical Data & Specifications
Swing Head: 14" x 19" Capacity
Capacity at 90 Degrees: 14" High x 19" Wide - 15" Rounds
Capacity at 45 Degrees: 14" High x 14" Wide - 15" Rounds
Capacity at 30 Degrees: 14" High x 10.5" Wide - 10.5" Rounds
Blade Drive Motor: 3 hp Variable Frequency AC Drive
Feed Control: Hydraulic with Adj. Rate & Feed Pressure Spring Balanced Head
Vise: Hydraulic, Full Stroke, Full Capacity
Bundling: Optional Hydraulic, Full Capacity
Drive Wheel: 20" Diameter Cast Iron
Blade Speed: AC Inverter Variable 70 to 400 SFPM
Blade Specifications: 1-1/4" x .042" x 197" Bi-Metal
Blade Tension: Spring Loaded by Handwheel
Coolant System: Flood Recirculating with 5 Gallon Reservoir
Voltage: 220 Volt, Single Phase
Dimensions: 92" Long x 42" Wide x 68" High
