New 0832 led dot matrix red display information board

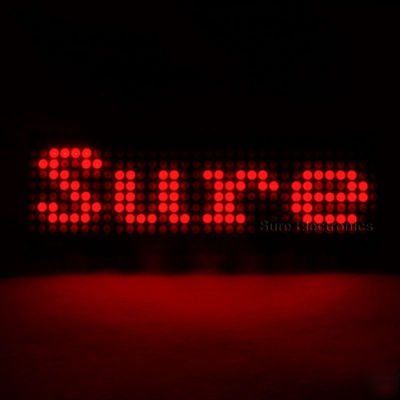

0832 Dot Matrix Red Display Information Board
1. Operating Temperature :-20 to +80
2. Storage Temperature: -20 to 85
3. Current (all LEDs on PWM, duty 16/16): 220mA(red),220mA (green),210mA(yellow)
4. Outline Dimension 153mm*53mm
1. HT1632-based 8*32 LED dot-matrix board
2. Maximum 4 pcs board of the same kind can be connected for extended application, via DIP switch
3. Either one of the two 16-pin male sockets can be used to connect drive board, which powers the 8*32 LED, as well as send data and control signal in a SPI-like mode.
4. Available in 3 differen colors: red, green and yellow
5. V-score sides can be cut off to facilitate the connection of more 8*32 boards
