Atten 5005 analog spectrum analyzer 0.15MHZ - 500MHZ

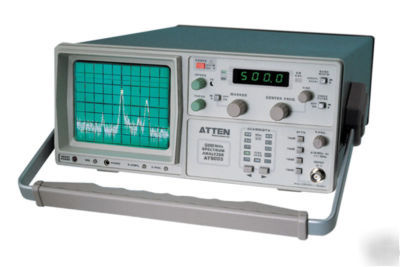

ATTEN SPECTRUM ANALYZER AT5005 0.15Mhz -500 Mhz
FROM THE SAME HIGH QUALITY TECHNOLOGY MAKERS OF THE ADS1000
AND THE TRUTH CAME TO LIFE IN CEF 2009 - ABOUT WHO MAKES THE HP/AGILENT AND SOME LE CROY PRODUCTS
- HERE IS THE MOST ACCURATE - RELIABLE AND MULTIFUNCTIONAL SA YOU CAN FIND -
THINKING ABOUT THE HP/AGILENT - THINK AGAIN - HERE IS BETTER -
- 1 FULL YEAR WARRANTY - WE EXCHANGE ITEMS WE DON'T REPAIR LIKE OTHERS -
A LATIN AMERICA - SOLO BRAZIL - ARGENTINA - PERU - MEXICO - PANAMA Y CUBA - NO OTRO PAIS DE NINGUNA MANERA
PLEASE WATCH THIS VIDEO OF THE ATTEN PRODUCTS IN DIGICOME
Frequency range: 0.15 to 500MHz
Center frequency display accuracy: +/-100kHz
Marker accuracy: 0.1% span +100kHz
Resolution of frequency display: 100k(4.5digit LED)
Frequency scanwidth accuracy: +/-10%
Frequency stability: Better than 150kHz/hour
If Bandwidth (-3dB): 400kHz and 20kHz
Amplitude range: -100dBm to +13dBm
Screen display range: 80dB(10dB/div. )
Reference level: -27dBm to +13dBm (in 10dB steps)
Reference level accuracy: +/-2dB
Average noise level: -90dBm(20kHz Bandwidth)
Distortion: <-55dBc of 2nd and 3rd harmonic
Third order intermod: -70dBc (two signals>3MHz apart)
Sensitivity: Better than -90dBm
Log scale fidelity: +/-2dB (without attn. ) 250MHz
Input attenuator accuracy: +/-1dB/10dB
Max. Input level: +10dBm, +/-25V DC (0dB attn. ) +20dBm (40dB attn. )
Frequency scanwidth: 100kHz/div. To 50MHz/div, in 1-2-5 steps and oHz/div. (Zero Scan)
-Spectrum Analyzer + Manual + Power Cord + BNC Cable + Test Antenna + Earth Cord
(PACKAGE DESCRIPTION ACCORDING TO FACTORY CAN CHANGE WITHOUT PREVIOUS NOTICE )
