> Fim fixed angle beveler, s/n 501364,mdl. V12
Fim fixed angle beveler, s/n 501364,mdl. V12

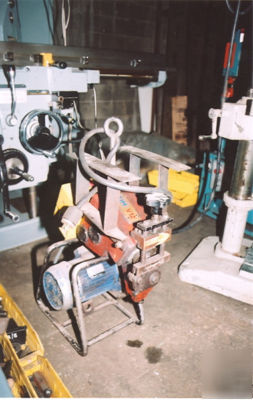

Mdl. V12 FIM Fixed Angle Beveler, S/N 501364, new approx. 1996
Max. depth of bevel on materials with R=40kg/mm .472
Max. depth of bevel on materials with R=55kg/mm .394
Max. material thickness 1.575
Min. width of workpiece 2.362
Min. bore for tube beveling 4.53
Performs chamfers at speed of 3m/min
On/off and emergency stop buttons
Manual vertical adjustment of roller work clamp
2.8 H.P. 3/60/220-440 volt motor
