New electric pallet stacker walkie pallet (2200 lbs)
New- Electric Pallet Stacker (2200 lbs)
Transport and Lift Pallets or Loads Securely and Economically.- Compact Design Allows it to Pass Through Doors and Work in Heavily Congested Areas.- Meets T V Rheinland / Gepr fte Sicherheit / Conformit Europ enne (TUV/GS/CE) Standards
* Load Centre Distance: 24 inches (600mm) (*c)
* Load Distance, centre of drive , axle to fork: 31 inches (795mm) (*x)
* Wheelbase: 55 inches (1395mm) (*y)
* Service Weight With Battery: 2270 lbs (1030 Kg)
* Service Weight Without Battery: 2000 lbs (910 Kg)
* Tire size, front: 10x3 inches (250x80mm)
* Tire size, rear: 4x3 inches (98x82mm)
* Additional wheels (dimensions): 6x2 inches (150x60mm)
* Service Brake: Electromagnetic Brake.
* Drive motor rating S2 60 min: 0.75 kW
* Lift motor rating at S3 15%: 2.2 kW
* Battery Voltage, nominal capacity k5: 24/200 V/Ah
* Battery Dimensions: 25x10x20 inches (675x254x500mm)

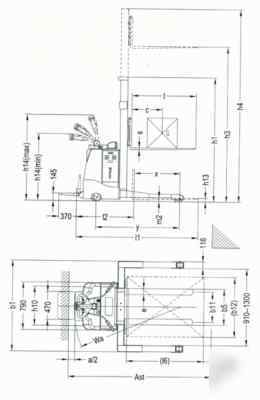

Please refer to the enclosed schematic to locate the following:
* Tread, front: 25 inches (636mm) (*b10)
* Tread, rear: 4 - 27 inches (100-680mm) (*b11)

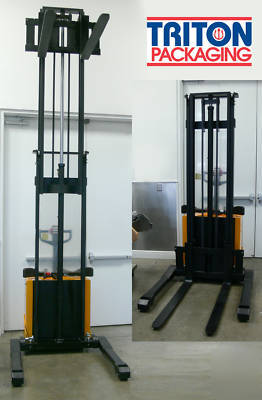

* Height, mast lowered: 94 inches (2395mm) (*h1)
* Lift: 138 inches (3500mm) (*h3)
* Height, mast extended: 165 inches (4195mm) (*h4)
* Height, lowered: 3 inches (70mm) (*h13)
* Overall lenght: 77 inches (1965mm) (*l1)
* Length to face of forks: 30 inches (780mm) (*l2)
* Ground clearance, centre of wheelbase: 0.80 inches (20mm) (*m2)
* Aisle width for pallets 1000x1200 crossways: 104 inches (2635mm) (*Ast)
* Aisle width for pallets 800x1200 lengthways: 101 inches (2570mm) (*Ast)
* Turning radius: 70 inches (1800mm) (*Wa)
* Package Size: 40" (1016mm) x 43" (1092mm) x 99" (2515mm)
* Package Weight: 2453 Lbs (1112 Kg)
