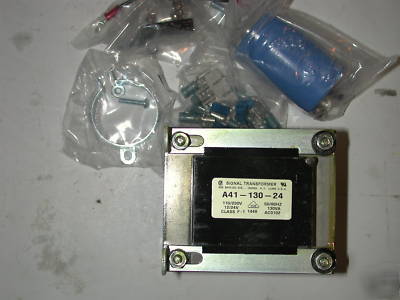

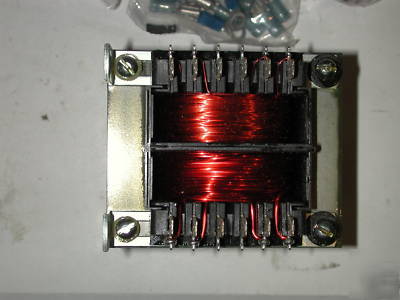

Signal transformer - signal's A41 intl. chassis mount
http:// /Data/Datasheets/A41.pdf
The A41 series Split Bobbin International Chassis Mount Transformers by Signal are designed to provide the high isolation, creepage and clearance necessary to comply with international safety standards. See details below
* Power - 25 VA to 175 VA sizes
* Dielectric Strength - 4000 VRMS Hipot
* Primaries - Dual primaries (115/230 V - 50/60 Hz)
* Dual Secondaries - Series or parallel
* Terminals - Solder lug / quick connect type terminals
* Leakage - Current meets UL 60601-1, IEC/EN 60601-1
* Insulation - Class F (155 C)
* Flammability Rating - Bobbin and shroud material meet UL 94-V0
* UL recognized to UL 506, File # E63829
* CSA certified to C22.2 #66, File # 221070
* VDE certified to VDE 0805 / EN 60950, File # 144
