Pacific measurements 1018B peak power meter

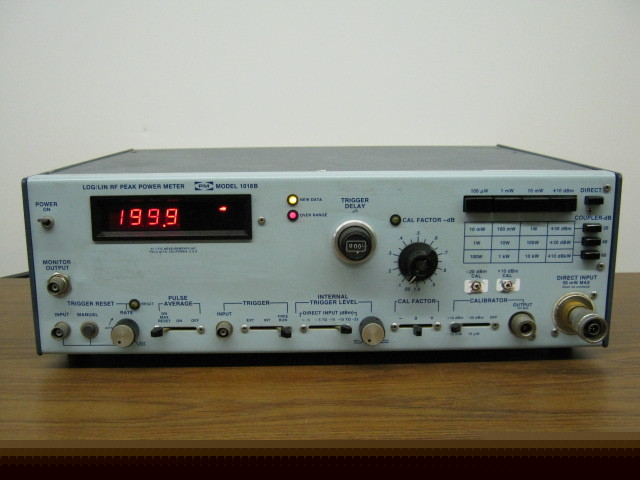

Pacific Measurements 1018B Peak Power Meter
The 1018B RF Peak Power Meter is a direct reading peak power meter that measures power on a single pulse, repeating pulses, or CW. Three trigger modes (Internal, External, and Free Run) plus an adjustable measurement gate, which can be placed at the desired point by use of trigger delay circuitry, add to its versatility. Measures and digitizes its readings in only 1 mS and readings can be made at rates up to 500 S. Single pulses down to 200 nS can be sampled and displayed in either dBm, mW, or on the 1018B's three digit readout. Frequency range from 100MHz to 18GHz; Power range from 10 W to 10 mW (-20 to +10 dBm). Calibrated output: +10 dBm (High), -20 dBm (Low); impedance 50-ohms.
