Pic development board + 2LCD+ some devices + ethernet

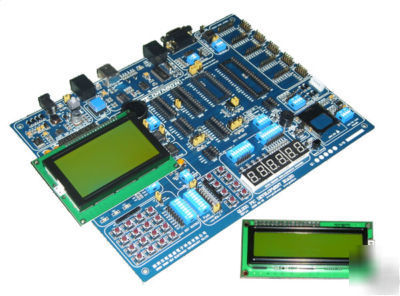

PIC Development Board w/ Programmer Kits
13. 128*64 LCD with Yellow backlight
14. 1602 LCD with Yellow backlight
15. CD-ROM (Programmer Driver , English version PDF User manual ,Layout,Board Schematic , Sample code (C / ASM) , MPLAB 7.50 .)
16. Dupont thread expansion connection 20x wire
262k Color LCD Kits + $50 (OPTIONAL)
* In addition to above characteristics,many humanized functions are designed in the development of QL200,For examples
Over-load protection function When there is over load in the demo system, the protection system will automatically start to avoid any damage of elements. After fault is corrected, the board will recover to work.
Auto-load of changed file function To achieve seamless integration with MPLAB IDE and other development software, the changed current target code is inspected automatically and then is transferred into the updated file automatically. This function offers great convenience for study and development, which avoids the trouble in repeating load of target code.
Function to identify the figuration bit and EEPROM in the file automatically When we write the configuration bit information and EEPROM data in the program, otherwise setup is not needed for programming. This function saves much time for regular change in program debugging and avoids the setup requirement for each program change.
On-board CPU on-line upgrade function It is available to download the updated programming software and run to upgrade hardware, which will upgrade on-board CPU to the updated version so that it can support more new devices.
dupont thread expansion connection
ICSP cable for ICD1/ICD2/MCD1/MCD2
http:// /watch?v=XH_39RF9GGo
Nokia Color LCD 130x130 pixeles Demo in PIC Dev. Board.
