Tooling plate or fixture hex moore machinist toolmaker


PRECISION GRIND CUBE OR SUB-PLATE. USA AMERICAN TOOLMAKER MADE AND NONE NICER! BLOCK HAS FORMER TOOLMAKERS NAME NEATLY STAMPED ON THE INSIDE. GRIND OR INSPECTION CUBE.

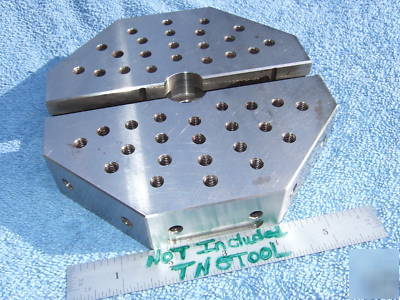

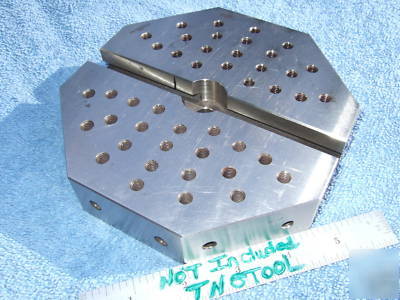

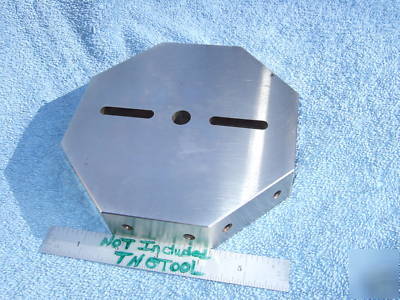

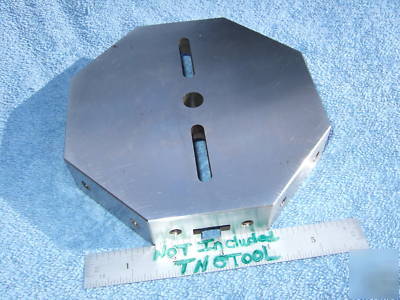

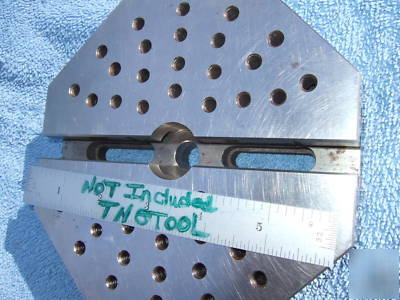

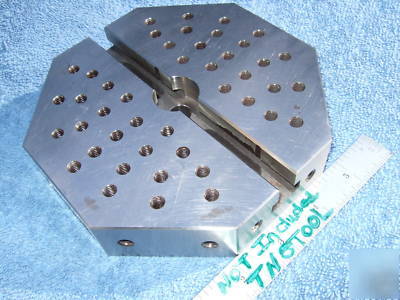

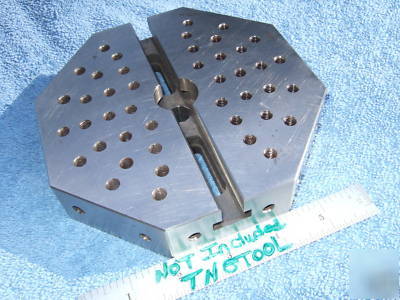

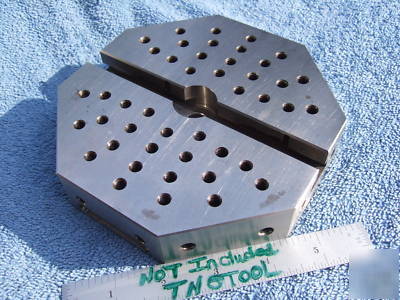

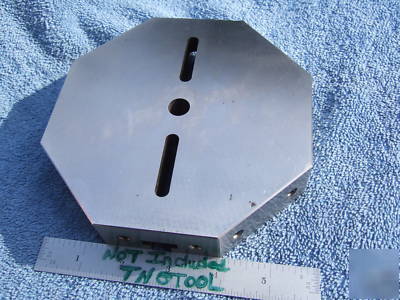

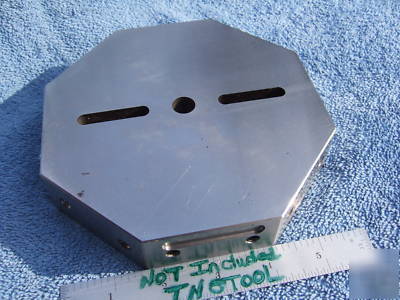

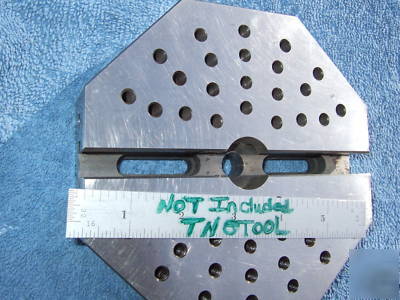

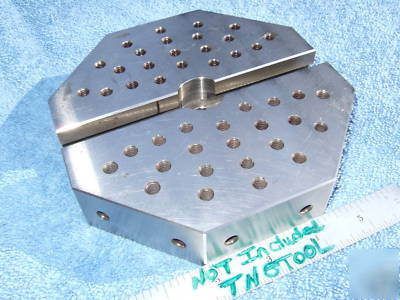

FIXTURE PLATE MEASURES 1.235" THICK X 5.977" HEX OR ACROSS ANY 2 PARALLEL SIDES. GRIND CUBE OR BLOCK HAS (44) BLIND TAPPED 1/4" X20 HOLES IN PLATE ON THE TOP FACE AND (2) ON EACH HEX FACE FOR A TOTAL OF (60) TAPPED 1/4" X 20 HOLES AS SHOWN. TOP PLATE THEN HAS A T-SLOT IN MIDDLE. FOOT IS 1/4"+ X 3/4"+ WITH .43" ABOVE IT. PLEASE CHECK SINCE THIS WAS USED ON A MOORE MACHINE IT MAY REQUIRE SPECIAL T-NUTS? IN THE SLOT ARE 2 SLOTTED (9/32") AND COUNTER-BORED FOR 1/4" SOCKET-HEAD CAPSCREWS BOTH 1-1/2" LONG. IN THE VERY CENTER FOF THE PLATE IS A JIG-GROUND COUNTER-BORE .965" AND HOLE CLEAR THROUGH THE PLATE IS .5005". GROUND FLAT PARALLEL AND SQUARE ON ALL SIDES TO .0002" ACCORDING TO TOOLMAKER AND THIS CHECKS MUCH BETTER. IT IS VERY NICE AND CLEAN! EXCELLENT USED TOOLMAKER MADE MOORE JIG GRIND FIXTURE PLATE AND MORE ARE LISTED IN OUR STORE.
