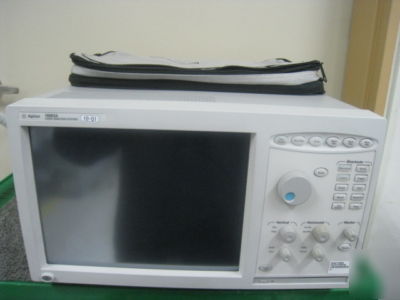

Hp/agilent 16903A logic analysis system
HP/Agilent 16903A Logic Analysis System
The Agilent 16903A logic analysis system provides high-performance, system-level debugging of digital designs. Expandability is the key to the system s long-term value. Customize this system for your specific needs with innovative probing, high-performance measurement modules, and post-processing analysis tools.
12.1 inch color touch screen display, 800 x 600 resolution
LAN: 10/100 BaseT (optional Gbit LAN)
I/O Ports: Two USB 1.1, parallel, serial, external video, calibration BNC, Clock in BNC
Interface to other instruments: Trigger In/Out, Target control port
View Scope integrates time-correlated logic analyzer & scope waveforms into single, waveform display
