New bbq concession trailer pit, kitchen, smoker, grill
Feel free to ask questions and make an offer. This rig needs to be moved. Good luck.

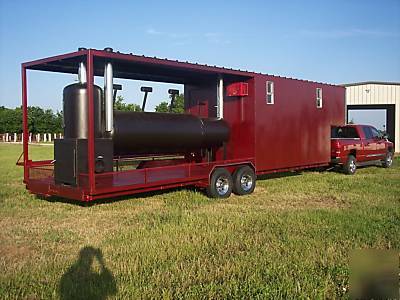

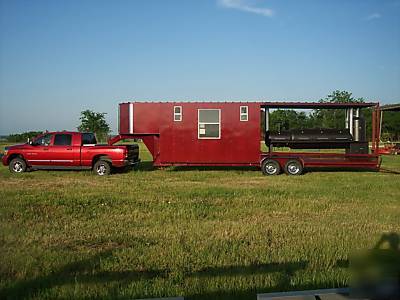

Brand New BBQ Concession Trailer for sale. Perfect for side business from home or primary business out on the road. Total trailer length is 38ft including the neck and is custom made to 102 wide. Total height from the ground to the top of the roof is a little over 10ft. It s sitting on a 14,000lb gross tandem axle trailer with NEW tires Chrome wheels and center caps. Brakes on both axles, safety chains, breakaway kit, adjustable neck, and LED lights. Half of the trailer is enclosed and air-conditioned and the other half contains a massive 15ft long Reverse flow pit. I will start off explaining the build of the trailer and then end up with the pit.

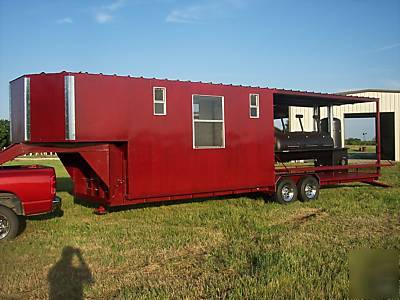

First, as stated above, the Gooseneck trailer measures 38ft long including the neck and 102 wide. The enclosed area of the trailer including the enclosed portion over the neck is 19ft long 102 wide and has an 8ft ceiling. The concession house is made with a square tubing frame and 16ga plate on the outside. The inside is completely finished off with FRP, which meets all health codes for cleaning out with a pressure washer. The building is also completely insulated. Diamond plate floor!
The trailer contains a 125amp breaker box with 14 double plug outlets which each run off a its on separate 20amp breaker. 2 of the outlets run off a 30amp breaker for the Air Conditioner and 2 outlets run off a 50amp breaker. In, other words there are plenty of outlets to go around and places for refrigerators, and turkey fryers, which need larger breakers. The system was professionally wired and has the ability to be converted to 220v on the inside if needed. The main electrical service line is mounted inside a box on the outside of the trailer and is ready to accept any style plug that you need. Lastly, there are lights inside the building and over the pit area that run on separate switches.

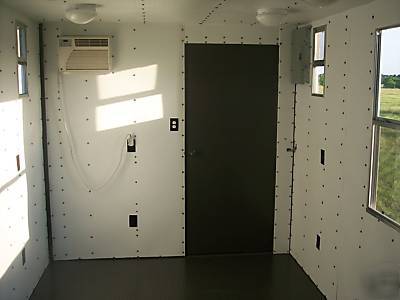

As stated above the trailer is custom built to its maximum legal width to give as much room as possible on the inside of the concession building. The usable width on the inside is 97 . This is way more than most trailers available and has a usable inside height of 91 . Once again, useable length including the neck is 19ft on the inside. There is all kinds of room inside this building. 7ft by 3ft door leading into the building and 3ft by 4ft serving window along with four 1ft by 2ft windows for air flow. Air condition mounted on the back wall.
The part of the trailer where the pit sits has a Diamond plate floor and is 16ft long 102 wide. There is a foldable 16ft long by 2ft wide serving table running alongside the left side of the pit. Also there is a 5ft long by 28 wide hideaway ramp on the back of the trailer that aids in getting on and off the trailer. See photos. 1ft tall top rail with expanded metal sides. Lights facing toward the pit and out toward the serving area.

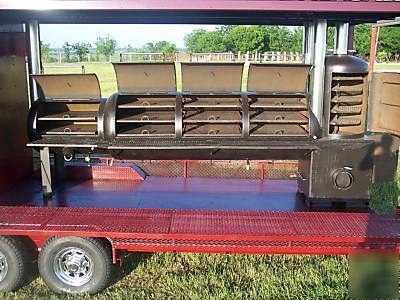

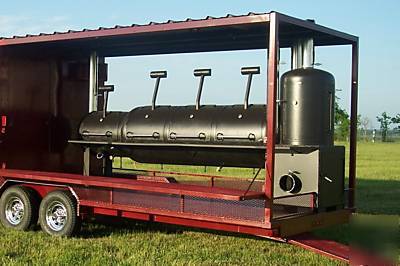

Starting from the back the pit has a 32" square firebox that is constructed from 1/2" STEEL PLATE. The box has two 8" round vents on either side that are adjustable for airflow. Also it has 2 Propane log starters mounted on the back of the firebox. The 1/2" plate holds the heat in and will last forever.
Sitting on top of the firebox is a 30" diameter Round Smoker/Warmer that is constructed from 1/4" Steel. It has (5) 28" circular racks that are mounted on a shaft in the center of the smoker. The racks rotate 360 degrees on the shaft to make it easy to put on and take off meat. See Photos. Also the smoker has an adjustable baffle that allows you to smoke using the heat and smoke from the main chamber. Simply shut the baffle and you have a warmer, or open it and cook. 6" stack with adjustable rain cap also. 2" temp gauge.
At the front of the pit opposite the firebox is a 3.5ft long by 30" diameter Charcoal Grill made from 1/4 steel. It has 2 slide out shelves that measure 30" by 26" on both, giving an 11 square ft cooking surface to grill on. See Photos, the grill has an Adjustable Charcoal Pan that sits below the cooking racks. You can adjust how close you want your charcoal from your cooking racks very easily. Also the grill is Gas Assisted!!!! 6" vent on the bottom of the char-grill to service the charcoal.... Now, the charcoal grill also has a baffle that goes from the Main Chamber into the Char-Grill. It allows you to cook using the firebox heat if you do not want to use charcoal, or leave the baffle shut and the CharGrill is independent from the main chamber. You have all the options. 6" stack with rain cap also if you decide to BBQ on this area. 2" temp gauge also.
All in all, basically with the baffles throughout the pit, the firebox has the ability and is big enough to cook on the main chamber, Cooker/Warmer, and it can service the Char-grill on the front. So if you wanted to use all your surfaces you have a total of about 95 SQUARE FEET of Cooking Surface. And with the REVERSE FLOW the pit is very efficient. You will not find another pit built from this heavy of material.
This is no cheap made grill. 1/2" thick firebox 3/8in Main chamber. This thing holds heat all day long.
It is BRAND NEW and I personally tested and seasoned it to check out how it operates. It balances the heat nicely with no hotspots. Very easy to heat it up to 450 degrees if needed, however I don't know who would need to do that really.
To sum things up, the trailer is painted with a Metallic Paint and the pit is painted with 1200 degree high temp paint. The axles are set to allow a ton truck to haul the rig. However, once the inside of the concession building is full of appliances etc a ton truck will be needed to support the tongue weight. The total trailer weight is 10,500lbs.
I have other pictures if anyone needs to see something specific. Feel free to make me an offer.
NOTE: I strive to keep all of my products in stock, however during certain times of the year it becomes almost impossible with high sales. Contact me beforehand if your needing a smoker fast to make sure I have it in stock. If I don t I can have one available in a matter of a few weeks.
