New honeywell ML6161B2032 direct coupled actuator 24VAC

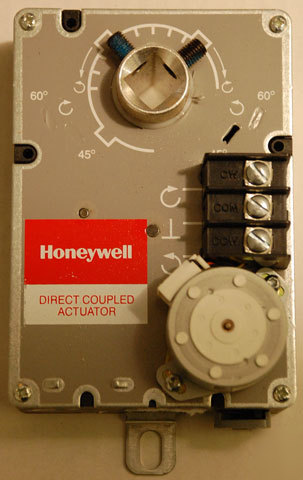

Honeywell ML6161B2032 Direct Coupled Actuator 24VAC NEW
This product is a Honeywell ML6161B2032 Direct Coupled Actuator 24VAC.
This item is not in a factory box but appears to be new and unused.
Please verify specs for this item number to make sure this item meets your needs before ordering.
From the manufactures website:
* HONEYWELL ML6161B2032 Floating, SPDT Actuator - 35 lb-in
* 24 Vac +/-20%, 50 Hz, 60 Hz
* Used to control dampers in applications such as variable air volume (VAV) terminal units and for mounting on ball valves; suitable for use with SPDT or floating thermostats or building automation controls.
* Control for air damper applications with up to 10 sq.ft. assuming 3.5 in-lb per sq.ft. of damper area, velocity independent.
* Superior A/C synchronous sub motor for consistent timing and actuator longevity.
* Eliminate need for limit switches or mechanical stops by providing magnetic coupling.
* All models include manual declutch lever, and bag assembly with two minimum position setscrews.
* Mount directly on 3/8 inch or 1/2 inch square or round damper shaft.
* Selectable 45, 60, and 90 stroke in either clockwise or counterclockwise direction.
