New murphy pressure transmitter pmx-200, 4-20MA 200PSI
New Murphy/Druck Pressure Transmitter PMX-200, 4-20ma Output, 0-200psi, Field Adjustable
This is a New-in-the-box high quality pressure guage.
The PXMS Series pressure transmitter is a state-of-the-art instrument providing 4 to 20 mA outputs. It features a precision micro-machined silicon diaphragm with fully welded stainless steel pressure port for greater accuracy, stability and a wide range of compatibility.
Silicon technology is used to provide a miniature micro-machined diaphragm which is electrostatically bonded to a glass substrate and is then stitch-bonded within a glass to metal seal assembly to provide exceptional thermal and stress isolation. This technology assures you of high accuracy and stability over a wide range of operating conditions. The enclosure is made of 316 stainless steel and all wetted parts are 316L stainless steel.
The PXT can be used in applications such as Compressors, Engines, Process Control, Liquid Level and Pumps.
Includes instructions, diagrams, mini screwdriver for field adjustments. Box has some bin wear.

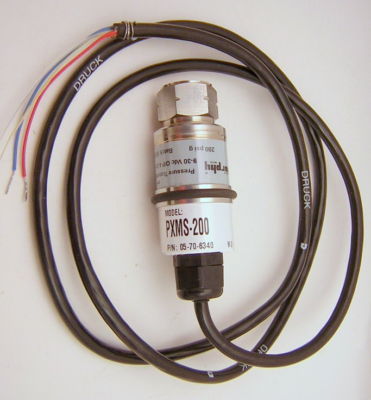

* Part Number: PXMS-200, 05-70-6340 (new Murphy number PXT-200)
* Field Adjustable Zero Offset and Span setting
* 316 SS Corrosion Resistant Construction
Accuracy (Full Scale, Best Straight Line):
0.25% including non-linearity, hysteresis and repeatability.
Long term stability: better than 0.2% FS over twelve (12) months.
Zero Setting: 0.5% of full scale (0.25% typical).
Span Setting: 0.5% of full scale BSL (RSS).
Overpressure/Proof Pressure: 400%
Why pay the dealer list price of $1689.30 when you can get it here for much less and have it delivered to your door?
