Advantech aws-8430T industrial pc,ipc,pca-6145B #4
SELL AS USED(TESTED) / BUT NEVER USED IN THE FIELD.

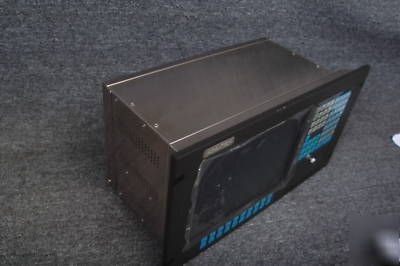

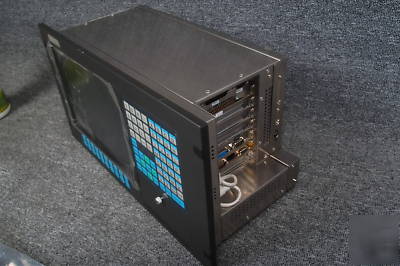

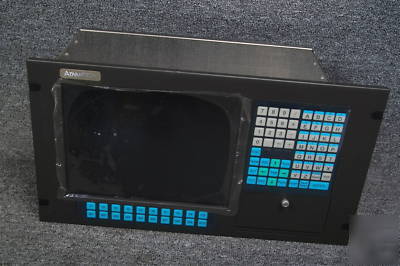

ADVANTECH AWS-8430T INDUSTRIAL PC

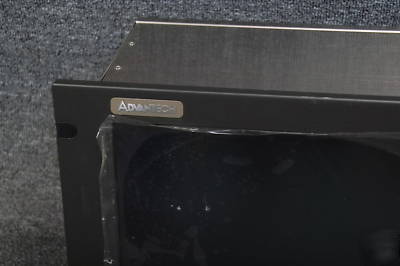

*Front Panel Aluminum (meets NEM4/IP65)
*Construction Heavy-duty stainless steel chassis

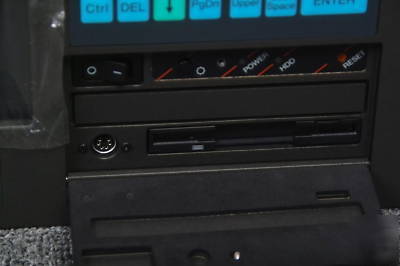

*Disk Drive Housing Supports one slim FDD, one 3.5" HDD & one slim
*CD-ROM (CD-ROM and HDD optional-NOT INSTALLED)

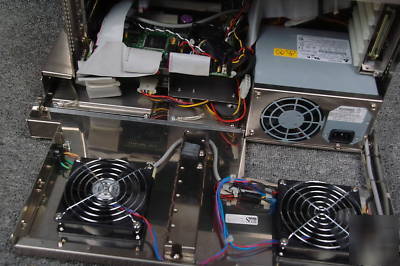

*Cooling System Two 49 CFM fans on rear panel, one in power supply

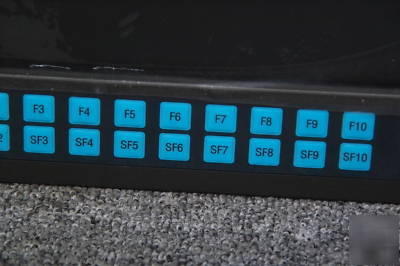

*Membrane Keypads One with 60 data-entry keys, one with 10 function keys
and 10 programmable macro function keys
*Keyboard/mouse 6 pin PS/2 connector with dust-protection door on
*Indicators LEDs for power on/off and HDD activity
*Operating Temperature 0 ~ 50 C (32 ~ 122 F)
*Relative Humidity 5 ~ 85% @ 40 C, non-condensing
*Storage Temperature -20 ~ 60 C
*Storage Humidity 5 ~ 95% non-condensing
*Dimensions (W x H x D) 482 x 266 x 220 mm (19.0" x 10.5" x 8.7")

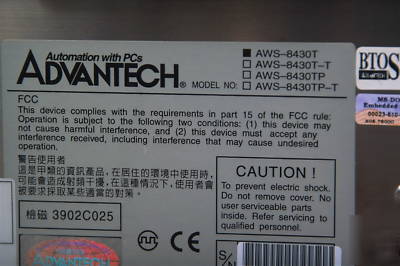

*Certifications CE, CCC, FCC, BSMI compliant
*Gross Weight 15.6 kg (34.4 lb)
*Vibration (operation) 5 ~ 500 Hz 1 grms Random Vibration

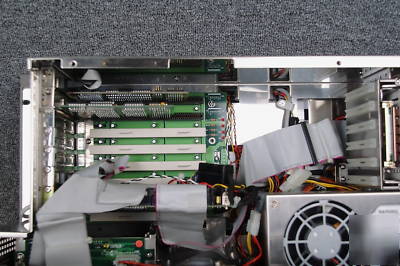

*PCA-6107P2 4 ISA, 2 PCI, 1 CPU slots
*AC input 300 W (standard offer)
*Input 90 ~ 135 VAC or 180 ~ 265 VAC, switchable
*Output +5 V @ 30 A; +12 V @ 15 A; +3.3 V @ 24 A
*-5 V @ 0.3 A; -12 V @ 0.8 A; +5 VSB @ 2 A
*Display Type 12.1 TFT color LCD
*Viewing Angle 90 (H), 40 (V)
*Operating Temperature 0 ~ 50 C
*VR Control Brightness & ON/OFF
*Backlight MTBF 20,000 hours
*Default VGA card PCA-6654LB (TP only)
*128M INDUSTRIAL GRADE SANDISK FLASHDRIVE
