Dspic 3- DSPIC33 FJ128GP708 pic 16BIT development board

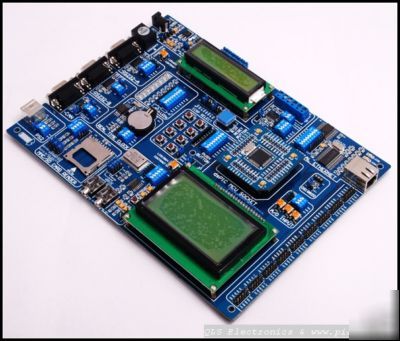

QLdsPIC3-PIC 16bit Microcontroller Development Board
The QLdsPIC3 development board is an experimental development board designed by QLS Electronic by integrating its main characteristic function module based on variety of 16-bit microcontroller DEMO boards home and aboard, the main circuit of which origins from the standard DEMO board and reference application circuit of MICROCHIP Co. The design of board resource is completely open which can be flexibly extended, is a good assistant for mass of engineers to deal with the 16-bit MICROCHIP microcontroller software and hardware design.
The QLdsPIC3 development board supports PIC24FJ96GA008 and other chips compatible with pin, and the chip module can be changed.
The QLdsPIC3 development board supports dsPIC30F6014A and other chips compatible with pin, and the chip module can be changed.
The QLdsPIC3 development board supports dsPIC33FJ128GP708 and other chips compatible with pin, and the chip module can be changed.
communication module 6-pin terminal block and configuration jumper
(use DuPont wire can be connected to the arbitrary I/O port)
Ethernet module by Microchip's ENC28J60, 10BASE-T stand alone Ethernet Controller.(use DuPont wire can be connected to the arbitrary I/O port)
Si3000 Voiceband Codec with MIC In/Speaker Jacks Jumper for selection of Si3000 Codec mode (Master/Slave) (use DuPont wire can be connected to the arbitrary I/O port)
Power module Separate on-board +5V and +3.3V regulators for VDD and AVDD with direct input from 9V, AC/DC wall adapter, 9V DC power source input jack for development, LED power-on indicator
Real Time Clock by PCF8583 with battery supply.(use DuPont wire can be connected to the arbitrary I/O port)
RS-232 communication A(Include RTS/CTS) for connection with a PC or any other device with a DB9 connector.
RS-232 communication B for connection with a PC or any other device with a DB9 connector.
Single CAN communication channel by MCP2551
3xPotentionmeters for simulating analog voltage input..(use DuPont wire can be connected to the arbitrary I/O port)
Digital thermometer DS1820 for measuring temperature from -55 C to 125 C.(use DuPont wire can be connected to the arbitrary I/O port)(remark chip DS18B20 is optional).
Program or Debug connector Port for to directly connect ICD2/MCD2/ICD3/
PICKIT2 for the board target chip program or debug
8 LEDs are provided. t(use DuPont wire can be connected to the arbitrary I/O port)
PS2 connector makes direct connection between QLdsPIC3 and PC keyboard.
16*2-character LCD internal 5*7 lattices, to display 16*2-character.(use DuPont wire can be connected to the arbitrary I/O port)
128*64- Graphic LCD 128*64 lattices.(use DuPont wire can be connected to the arbitrary I/O port)
Preprogrammed dsPIC30F6014A Plug-in Module, VDD =5V, Crystal for 10Mhz, On each corner of the card there is one electrolytic capacitor for stable power supply..(remark dsPIC30F6014A Chip Module is optional, Price is $24.90).
Preprogrammed PIC24FJ96GA008 Plug-in Module, VDD =3.3V,Please set VDD jump for 3.3V, Crystal for 10Mhz, On each corner of the card there is one electrolytic capacitor for stable power supply..(remark PIC24FJ96GA008 Chip Module is optional, Price is $24.90).
Preprogrammed dsPIC33FJ128GP708 Plug-in Module, VDD =3.3V,Please set VDD jump for 3.3V, Crystal for 10Mhz, On each corner of the card there is one electrolytic capacitor for stable power supply.
Open modular design All modules can be on/off controlled by DIP switch. Each module is designed to connect to I/O port of Microcontroller. Connection of module with any port of Microcontroller is conveniently achieved through dupont thread. Connection to preset port is available by using DIP switch without dupont thread. All I/O ports are open externally with output socket. Expansion is easily accomplished.
* On-board simulation debugging and Programmer interface direct connection to ICD2/ICD3/MCD2/PICKIT2
* The master controller is in independent design and it s easy to change.
1) Power supply module, Jump select VDD for 5V or 3.3V
2) Master controller chip module
3) ICSP Connect port,it can connect icd2/icd3/mcd2/pickit2 for program or debug,
4) Master controller chip ICSP I/O Pin select.
9) DS18B20 digital thermometer module
10) Real time clock module by PCF8583
12) 16*2 LCD backlight potentiometer
14) 128*64 LCD backlight potentiometert
15) SD/MMC card Read/Write Module
20) RS-485 and RS-422 communication module by MAX489E
21) Ethernet module by ENC28J60
22) Si3000 Voiceband Codec with MIC In/Speaker Jacks
23) All pins are taken out on IDC10 connectors to make them available for further connections.
Sample with C30 Program sources code as below (using dsPIC30F6014):
QLdsPIC3 User's Manual : http:// /soft/dspic3_user_v2_en.pdf
1. QLdsPIC3 DEVELOPMENT Board (Include one dsPIC33FJ128GP708 chip module,one 16*2 LCD,one 128*64 LCD)
4. Dupont thread expansion connection 20x wire
5. DC wall adapter(input: AC110-240V 50/60Hz, output: DC9V 1000mA)
6. CD-ROM (English version PDF User manual ,PCB Board Layout PDF,Schematic PDF , Sample code (C30) , MPLAB IDE, Chip's Datasheet)
