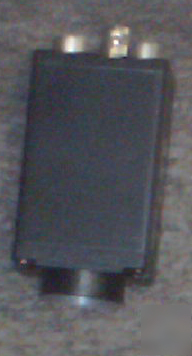

Sony xc-73 monochrome ccd camera
Like new camera without lens. Mounting bracket available upon request
The XC-75/73 series of monochrome camera module has been designed to be a more compact and versatile version of the widely used XC-77 for machine vision application. The XC-73 has an asynchronous trigger shutter function (S-DONPISHA) that allows fast moving objects to be captured upon the application of an external signal. The XC-75/73 series has been made even more versatile by the introduction of the L-type frame. This enables installation systems where space is a premium without using a mirror.
High Resolution : 570(H) x 485(V) TV lines
High Sensitivity, High S/N ratio
Electronic Shutter (1/ 125 ~ 1/ 10,000 sec.)
Asynchronous Shutter (S-DONPISHA)
External Shutter Speed Control (0.8V ~ 1/ 500,000 sec.)
Interlaced/ Non-Interlaced
Picture elements 768(H) x 494(V)
CCD horizontal frequency 14.318MHz
Cell size 6.35(H) x 7.4 (V) micron m
Flange Back 17.526mm 0.05
Equipment in near new condition. Lens is not included with sale.
