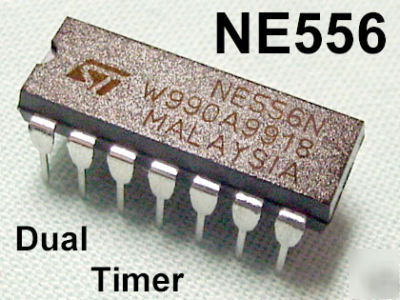

(12) NE556 556 universal dual timer *very long delays*
( a.k.a. "Dual '555" and LM556 )
Fixed price is for a lot of (12) pieces.
The NE556 / LM556 is the world's most popular universal dual timer IC. It's the equivalent of two independent '555 timers in a single DIP-14 package. This compact, simple circuit design has inspired tons of application literature. Check the excellent AN170 and other links below, or do your own Google search for literally thousands of circuit ideas.
Circuits based on the universal '555 single timer can be applied directly to each half of the '556 dual timer, noting the obvious pin-out differences.
* Simple Circuitry, (2) Independent Timers
Datasheet: NE556 (101K PDF) Application Note AN170: NE555/556 AN170 (356K PDF)
Here's a few circuit application links to spur your imagination.
http://www.doctronics.co.uk/555.htm
http://home.cogeco.ca/~rpaisley4/LM555.html
http:// /T/timers.htm
http:// /555-circuits.htm
http:// /PDFs/column008.pdf
http:// /PDFs/column009.pdf
