Dsx access systems 1032 1030P intelligent controller io
Following Information was found for this part:
The new DSX-1030PR5 Processor is now available for upgrades to existing 1030 Series I/O Controllers. This faster new retrofit processor provides 512K of RAM and 512K of Flash ROM to existing 1032, 1033, and 1034 Controllers. The 1030PR5 processor is a direct replacement of the existing 1030P processor and can be used to bring existing systems up to today s capabilities for a minimal cost.

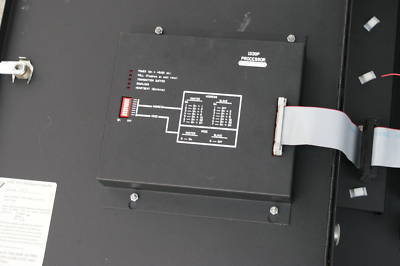

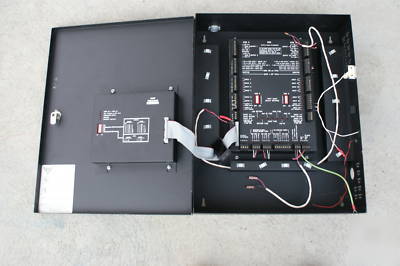

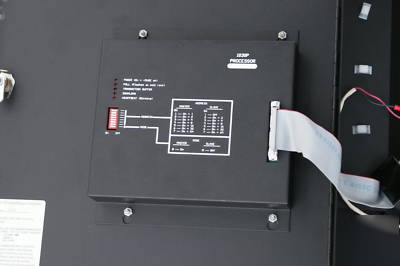

Unit #1: Pictured in the first 4 pictures. 1030P is marked on the back as 1030P Rev 5. The 1030PR5.

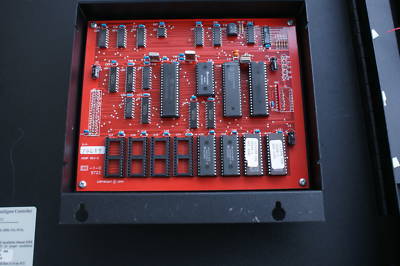

Unit #2: Pictured in pictures 5-8. Standard 1030P board.

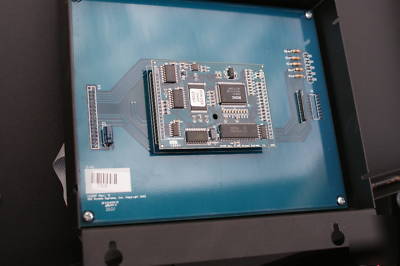

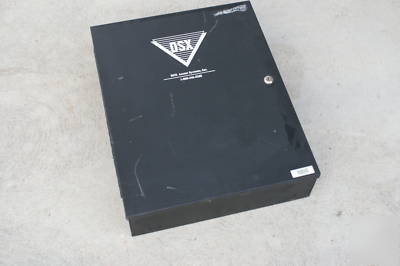

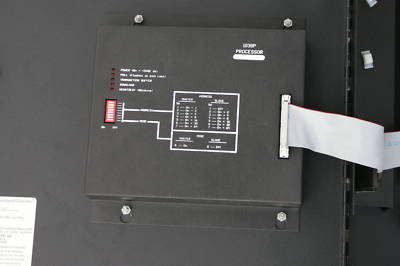

Unit #3: Pictured in pictures 9-12. 1030P board isnt shown but it is blue and so it is a 1030PR5 upgraded board.

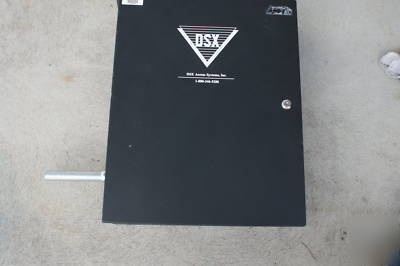

Overall Cosmetics: Some rubbing, scratching on the outside but it is reasonable. Perhaps a couple of dings even. Pictures give a good idea on the general condition. A couple of the ports for the wiring to the conduit may be bent to some degree but still reasonable.
