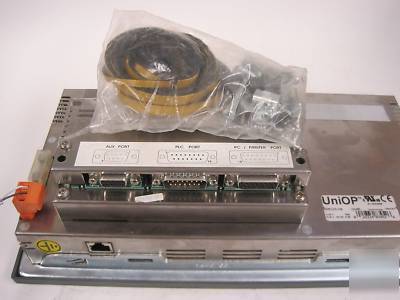

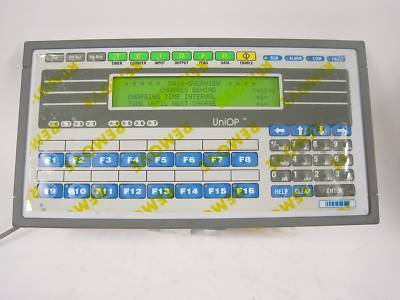

Exor uniop operator interface lcd panel mkdr-04-0045
Item Title: Human Interface Operator Panel
* Software Version: FW 32/ 4.20
* User Memory: 512mb (Expandable to 1MB)
* Ports: PLC/ PC/ Printer/ Aux/ Kexboard
* NEMA 4/12 compliant enclosure
* UniNET Network capabilities
* One RS-232 / RS-422 / RS-485 / 20mA current loop serial port, speeds up to 38,400 baud for direct
* One RS -232 port for PC or printer communications
* One auxiliary port for high speed bus network communications
* Real time clock with battery back-up
* 128 KB internal memory standard Flash EPROM
* Unlimited number of variables per page
* Historical event list (last 256 events)
* Eight-level password protection
* Print reports, alarm list, and event list to serial printer
* Displays ASCII standard character set
For more complete specifications please review the Product Link below
Condition: New no Box. Protective film is still on the front panel. Mounting Brackets, Gasket and Label Strips are included. Bezel has very light wear from being out of box.
