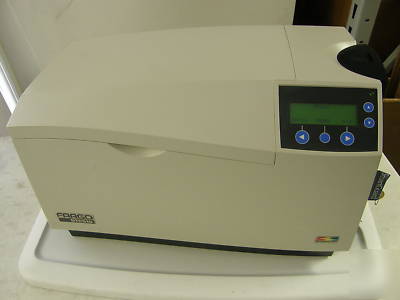

Fargo DTC515 color id card printer w/ribbon
**INCLUDES POWER CORD, KEY AND ACCESS CARD**
The sturdy Fargo DTC515 color ID card printers offer faithful, forthright function for all of your direct-to-card printing needs. With the DTC515, you don't have to sacrifice simplicity to enjoy loads of encoding options and sharp images. Fargo offers smart card and magnetic stripe encoding modules for the DTC515, and you may choose to install a double or single-sided lamination module in the factory or later on, when your needs change. All encoding and lamination happens in one pass through the printer so that your cards land in the output hopper ready for immediate use.
The Fargo DTC515 employs RFID technology to let you know when you're running low on ink and whether or not you've installed the correct ribbon. An automatic card cleaning device keeps your blank cards spotless to ensure the most consistent print quality possible, and an access door with a window allows you to see how many cards are remaining without letting in dust. Fargo also offers a security package to help protect your printer and the cards you print, with a card hopper lock and an access system to prevent unauthorized users from printing.
Advantages of the Fargo DTC515 Printer
* Print speed 27 seconds per color card or 7 seconds per black and white card
* Dual card input hopper allows you to print two different types of card at once; each hopper holds 100 cards
* Optional smart card encoder reads and encodes contact or contactless smart cards; it also reads proximity cards
* Software drivers for Windows 98, Me, 2000 and XP
Dye-Sublimation/Resin Thermal Transfer
Up to 16.7 million/256 shades per pixel
Full Color with resin black, YMCKO*
Full Color with two resin black panels, YMCKOK*
Resin black, green, blue, red, white, silver, gold and scratch-off
DTC510/515: 7 seconds per card / 514 cards per hour (K)*
DTC510/515: 12 seconds per card / 300 cards per hour (BO)*
DTC510/515: 27 seconds per card / 133 cards per hour (YMCKO)*
DTC520/525: 35 seconds per card /102 cards per hour (YMCKOK)*
*Indicates the ribbon type and the number of ribbon panels
printed where Y=Yellow, M=Magenta, C=Cyan and K=Resin
Black, O=Overlay, B=Dye-Sublimation Black
CR-80 (3.375"L x 2.125"W / 85.6mmL x 54mmW)
CR-80, edge-to-edge (3.37"L x 2.11"W / 85.5mmL x
3.25" to 3.37" / 82mm to 85.7mm
.010" to .060" / .254mm to 1.524mm (single-sided printing
only for 10 mil and 60 mil cards.)
PVC or polyester cards with polished PVC finish; monochrome
resin required for straight polyester
Single hopper; 100 PVC cards (.030"); auto or manual feed
Dual hopper; 200 PVC cards (.030"); auto or manual feed
SmartGuard/SmartShield, lockable input hopper
Removable card cleaning cartridge with replaceable cleaning tape
User-friendly, 4-line LCD display with softkey controls
Windows 95/98, Windows NT 4.0/2000, Optional
Standard 8-bit Centronics-type parallel, Optional EIA-232C serial interface
Code 39, Code 128 B & C with & without check digit
PDF-417 2D bar code and other symbologies available via Windows driver
Resident: Swiss Bold 8, 10, 12, 14, 16, 18, and 22
True Type fonts available via Windows driver
