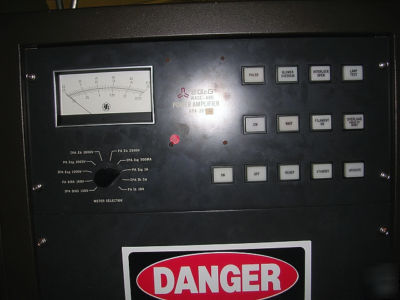

Ifi eg&g rf power amp cw 1KW 10KZ- 250MHZ bullet proof

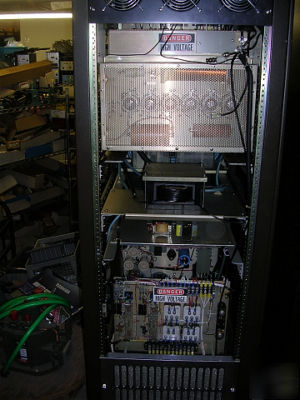

CLASS A 1KW, CW. A RANGE OF 10KHz TO 250 MHz. 208V 3PH. 20A. 30dB GAIN RACK AND TUBE.

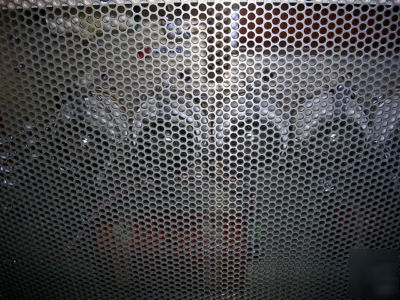

WE DO NOT HAVE A LOT OF DOCUMATION OTHER THAN SO TEST DATA FROM IFI. WE DID SPEAK W/ A EG&G DESIGN ENGINEER WHO SPOKE ABOUT HOW THEY WOULD CASCADE TWO UNITS WHICH WOULD SMOOTH OUT THE WAVE OR SIGNAL. THE AMP IS NOT A NEW SOLID STATE DESIGN. THIS AMP IS OLD SCHOOL OF TUBE AND TRANSFORMERS. THE UNIT USES A SERIES OF 6 EIMAC 4CX250B TO DRIVE A BANK OF 24 EIMAC 4CX250B. A RATIO OF 1 TO 4 TUBES. BOTH FIRMS CALL THIE AMPLIFIER BULLET PROOF. IF YOU KNOW WHAT ALL THIS MEANS THAN THIS COULD BE AN ITEM FOR YOU IF NOT MAYBE NOT SO MUCH.
WE HAVE 2 UNIT ONE WITH 1200 HRS THE OTHER WITH 1300 HRS.
