Intermec 9745 microbar rf base station for sabre 1552
INTERMEC 9745 MICROBAR RF BASE STATION for Sabre 1552
Microbar RF Wireless Base Station
Multiples AUTOMATICALLY Discounted (s/h) at checkout

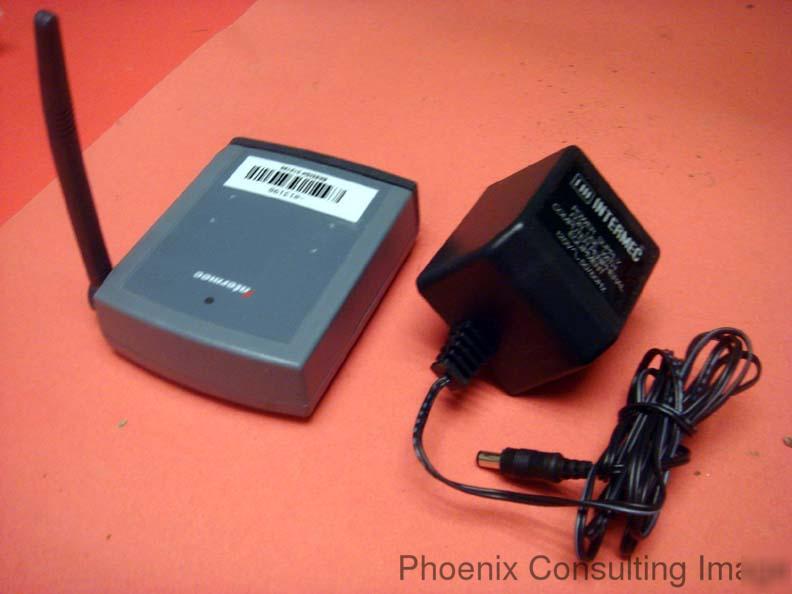

Acquired from the US Government. Actual item is shown. Only what is shown is included. Used unit. Guaranteed functional. Includes power supply as shown. Units are guaranteed to be as described.
The MicroBar 9745 RF Base Station can interface with up to (9) Sabre 1552 bar code scanners at distances of up to 50 feet. The 1552 and the 9745 use Intermec s PicoLink wireless personal area network which operates using an unlicensed 2.4GHz radio frequency (RF) hopping design that has global regulatory acceptance and superior interference immunity versus other narrow band RF sources.
This item is for the MicroBar 9745 RF Base Station only. Sabre 1552 Scanners are not included.
Frequency: 2.00 to 2.4835 GHz (ISM Band), Frequency Hopping Carrier
Response time, standard mode: 10 mS typical
Response time, low power mode: 65 mS typical
(1) DB-15 Keyboard / terminal and RS-232 connector for host port
(1) RJ-45 Auxiliary RS-232, service port, and wand emulation output connector
Operating voltage: +4.0 to 14.0VDC
Power consumption, standard mode: 285mA (typical ) @ 5VDC
Power consumption, low power mode: 140mA (typical) @ 5VDC
