Leviton wired-in surge protector filter suppressor 20A

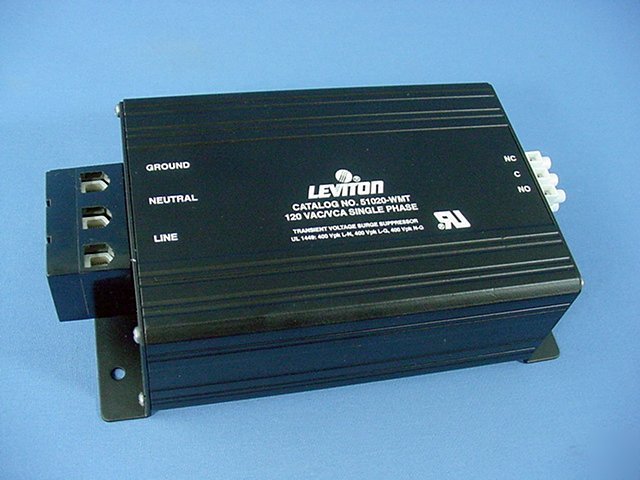

Leviton Wired-In Surge Protector Filter Suppressor 20A
Leviton 51020-WMT wired-in traffic light control surge protective device (SPD). Allows you to build surge suppression into your next project. Single phase, 3-wire, 20A 120VAC, for use in parallet connection. Features include:
* Provides surge protection to branch circuits
* Staged multi-component surge suppression circuitry provides clamping envelope that follows AC sine-wave contour
* For use by OEMs who wish to include surge protection as an equipment feature
* Primary and secondary suppression circuits are automatic resettable fuse protected
* Diagnostic cicuitry, with LED's, to indicate surge protection status and audible alert if surge protection is lost
* NO/NC relay status contacts allow unit to be wired into remote monitoring if desired
* If surge protection is lost power is still provided to load until SPD module is replaced
* Max. Surge Current (test w. 8x20s wave): L-N: 52kA
* Noise Rejection: 0-50dB(@ 5kH-100MHz)
* Operating Frequency Range: 50, 60Hz
* UL 1449 (2nd Ed.) Rating: L-N: 330V; L-G: 330V; N-G: 400V
* MCOV (maximum continuous operating voltage): 150V AC
