New dwyer model 1823-20, 1800 series pressure switch

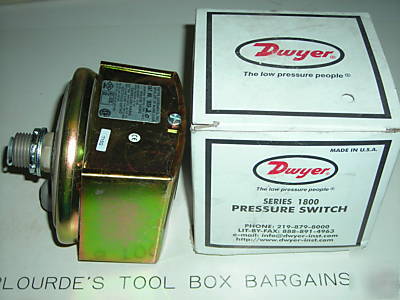

DWYER MODEL 1823-20, 1800 SERIES LOW DIFFERENTIAL PRESSURE SWITCH
Diaphragm Vertical Type 1 Enclosure
Pressure Rating: Maximum 10 PSI, Maximum Surge Pressure 25 PSI
Maximum Temperature 180 deg F, Use No. 14 awg Cu Wire Rated 194 Deg. F Minimum
Electrical Rating: 15 amp 125,250, 480 Volts AC
1/8 HP 125 VAC, 1/4 HP 250 VAC
