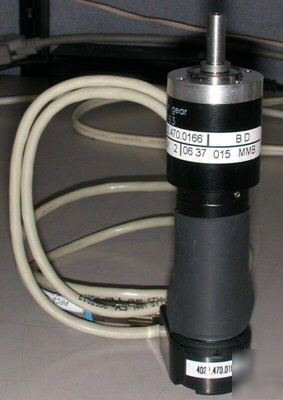

Asml 4022.470.0166 two maxon motor gears svg
Max. continuous torque at gear output Nm 2.3
Intermittently permissible torque at gear output Nm 3.4
Sense of rotation, drive to output
Average backlash, unloaded 0.8
Max. motor shaft diameter mm 3.0
Planetary Gearhead straight teeth
Bearing at output ball bearing
Radial play , 5.0 mm from flange max. 0.140 mm
Max. perm. radial load , 12.0 mm from flange 140 N
Max. perm. axial load max. 120 N
Max. perm. force for press fit max. 120 N
Recommended input speed < 6,000 min-1
Recommended temperature range - 20 ... +100 C
Option: extended temperature range - 35 +100 C
